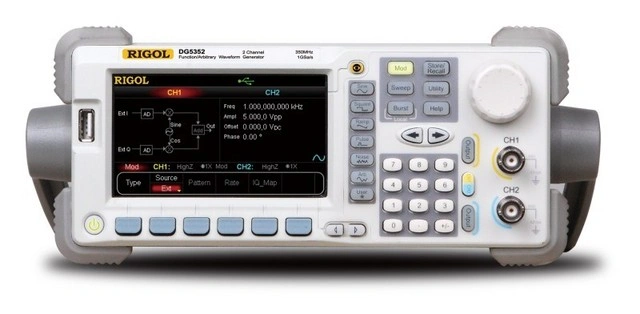

Rigol DG5252 Waveform Generator
Quick Overview
DG5252 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5252 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.
Product Description:
The Rigol DG5252 is a 2 channel Function / Arbitary Waveform Generator to create high quality signals up to 250 MHz (Sine). Beside the analog output the devices include a USB-Host- and a USB-device, a RS-232, LAN and GPIB interface.
The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.
|
Model |
DG5252 |
|||||||
|
Max. Frequency |
70 MHz |
70 MHz |
100 MHz |
100 MHz |
250 MHz |
250 MHz |
350 MHz |
350 MHz |
|
Max. Sample rate |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
|
Resolution |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
|
Channels |
1 |
2 |
1 |
2 |
1 |
2 |
1 |
2 |
Special Features:
Filesystem and USB Stick Support
The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.
Integrated Helpsystem
The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.
Specifications:
Generator |
Function / Waveform Generator Rigol DG5252 |
|
Display |
4.3" TFT LCD with 16M true colour |
|
Resolution |
480 × 272 Pixel |
|
Interfaces |
- USB-Host (for USB stick i.e. to save/load waveforms) - USB for a PC connection - LAN for network connection - GPIB (IEE-488, General Purpose Interface Bus) |
|
Dimensions (W × H × D) |
263 mm × 107 mm × 505 mm |
|
Weight |
4.3 kg (9.48 lbs) |
|
Supported operation systems |
Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit) |
|
Function |
Function / Waveform Generator Rigol DG5252 |
|
Channels |
2 |
|
Signal Output |
Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise |
|
Vertical Resolution |
14 bit |
|
Amplitudes |
5 mVpp ~ 10 Vpp (50 Ω) |
|
DC Offset |
±5 V (50 Ω) |
|
Sample Rate |
1 GSa/s |
|
Frequency Range Sine |
1 µHz - 250 MHz |
|
Frequency Range Rectangle |
1 µHz - 120 MHz |
|
Frequency Range Pulse |
1 µHz - 5 MHz |
|
Frequency Range Arbitrary |
1 µHz - 50 MHz |
|
Frequency Range Noise |
250 MHz (-3db) |
|
Resolution |
1 µHz |
Free shipping to any address in South Africa
011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00
Product details
Category: Function Generator
Manufacturer: Rigol
Product code - SKU: Rigol DG5252 Waveform Generator
