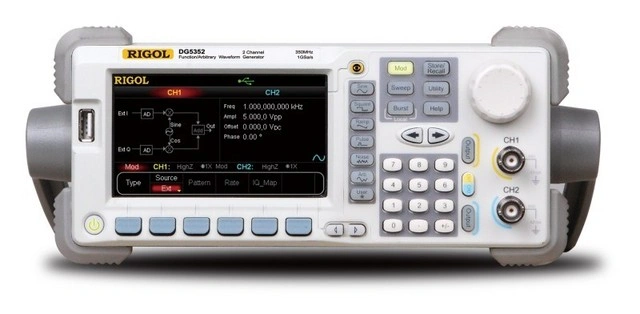

Rigol DG5251 Waveform Generator

SKU: Rigol DG5251 Waveform Generator

Rigol DG5251 Waveform Generator



Quick Overview:

DG5251 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5251 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.



Product Description:

The Rigol DG5251 is a Function / Arbitary Waveform Generator to create high quality signals up to 250 MHz (Sine). Beside the analog output the devices include a USB-Host- and a USB-device, a RS-232, LAN and GPIB interface.

The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.



Model

DG5071

DG5072

DG5101

DG5102

DG5251

DG5252

DG5351

DG5352

Max. Frequency

70 MHz

70 MHz

100 MHz

100 MHz

250 MHz

250 MHz

350 MHz

350 MHz

Max. Sample rate

1 GSa/s

1 GSa/s

1 GSa/s

1 GSa/s

1 GSa/s

1 GSa/s

1 GSa/s

1 GSa/s

Resolution

1 µHz

1 µHz

1 µHz

1 µHz

1 µHz

1 µHz

1 µHz

1 µHz

Channels

1

2

1

2

1

2

1

2



Special Features:



Filesystem and USB Stick Support

The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.



Integrated Helpsystem

The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.



Specifications:


Generator

Function / Waveform Generator Rigol DG5251

Display

4.3" TFT LCD with 16M true colour

Resolution

480 × 272 Pixel

Interfaces

- USB-Host (for USB stick i.e. to save/load waveforms)

- USB for a PC connection

- LAN for network connection

- GPIB (IEE-488, General Purpose Interface Bus)

Dimensions (W × H × D)

263 mm × 107 mm × 505 mm
(10.35" × 4.21" × 19.88")

Weight

4.3 kg (9.48 lbs)

Supported operation systems

Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)





Function

Function / Waveform Generator Rigol DG5251

Channels

1

Signal Output

Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise

Vertical Resolution

14 bit

Amplitudes

5 mVpp ~ 10 Vpp (50 Ω)

DC Offset

±5 V (50 Ω)

Sample Rate

1 GSa/s

Frequency Range Sine

1 µHz - 250 MHz

Frequency Range Rectangle

1 µHz - 120 MHz

Frequency Range Pulse

1 µHz - 50 MHz

Frequency Range Ramp

1 µHz - 5 MHz

Frequency Range Arbitrary

1 µHz - 50 MHz

Frequency Range Noise

250 MHz (-3db)

Resolution

1 µHz
