 ViewConn (VC-6200) Standard Package images

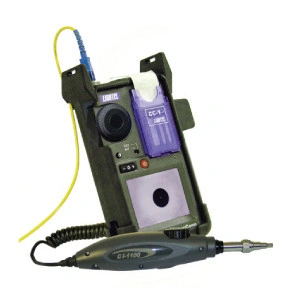

ViewConn (VC-6200) Standard Package

SKU: VC-6200

Product Description:

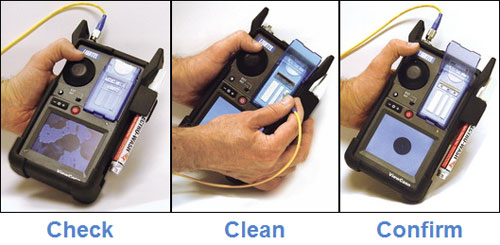

ViewConn (VC-6200) enables users to inspect connector ends for contamination, clean the connectors, and re-inspect, ensuring optimal signal quality while reducing installation time. The USB port allows full image capture capability for documentation - all from one hand-held unit.



Product Features:

ViewConn (VC-6200)

Field of View

~ 425µm x 320µm

Resolution

0.5µm detectable

Focus

Manual Adjustment, 2 mm max travel

Light source

Blue LED

Display

3.5” TFT-LCD, 960 x 240 pixels

Controls

Adjustable brightness and contrast

Power supply

4 AA rechargeable batteries or AC power supply

Battery life

4 hours

Charger & AC adapter

Battery charger/adapter (US plugs)

Dimensions

170mm x 95mm x 30mm (without cover)

Weight

350g (without battery)

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 70°C



Package Contents



1 VC-6200 unit with a CleanConn CC-1 cleaner module mounted



1 Universal tip for 2.5mm male PC connectors*



1 Universal tip for 1.25mm male PC connectors*



1 4x AA battery set

VC-6200

1 4x AA battery charger



1 AC to 6V DC power adapter



1 Spare CC-1 module



1 CD for USB video driver & display/capture software



1 USB2.0 mini-B cable (ViewConn to computer)



1 Ruggedized cover

*APC and dedicated MU ViewConn tips are available for the VC-6200
