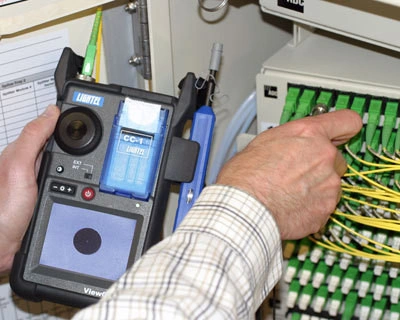

 ViewConn 6200 Plus Package (VC-6200-PL) images


Pin It


ViewConn 6200 Plus Package (VC-6200-PL)

SKU: VC-6200-PL

Product Description:

The ViewConn® Plus dual microscope design can significantly reduce inspection time. Patchcords drop into the top mounted scope, and with the flip of a switch, you can inspect in-adapter connectors with the hand held probe. In seconds, both male and female connector pairs can be inspected without changing tips.


Like all ViewConns, the VC-6200-PL has a built-in patchcord cleaner allowing you to inspect, clean and re-inspect the connector while helping keep your hands free. A USB output is included for image capture and storage on your PC.

One of ViewConn's optional power meters can be integrated with ViewConn Plus whenever needed.





ViewConn (VC-6200)

Field of View

~ 425µm x 320µm

Resolution

0.5µm detectable

Focus

Manual Adjustment, 2 mm max travel

Light source

Blue LED

Display

3.5” TFT-LCD, 960 x 240 pixels

Controls

Adjustable brightness and contrast

Power supply

4 AA rechargeable batteries  or AC power supply

Battery life

4 hours

Charger & AC adapter

Battery charger/adapter (US plugs)

Dimensions

170mm x 95mm x 30mm (without cover)

Weight

350g (without battery)

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 70°C



Probe (CI-1100HS)

Field of View

~ 425µm x 320µm

Resolution

0.5µm detectable

Focus

Manual Adjustment, 2 mm max travel

Light source

Blue LED

Power supply

ViewConn via 4-pin jack

Dimensions

35mm diameter x 175mm length (without tip)

Weight

200g



Package Contents



1 VC-6200 unit with a CleanConn CC-1 cleaner module mounted



1 Universal tip for 2.5mm male PC connectors*



1 Universal tip for 1.25mm male PC connectors*



1 4x AA battery set



1 4x AA battery charger



1 AC to 6V DC power adapter

VC-6200-PL

1 Spare CC-1 module



1 CD for USB video driver & display/capture software



1 USB2.0 mini-B cable (ViewConn to computer)



1 Ruggedized cover



1 CI-1100 handset probe



1 SC/PC and FC/PC probe tip for bulkheads**



1 LC/PC probe tip for bulkheads**

*APC and dedicated MU ViewConn tips are also available for the VC-6200
**Additional Series 2 tips are available for the
