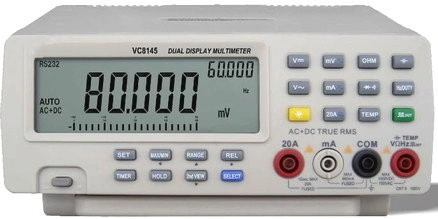

SKU: VC8145
Product Description:
• Large LCD, High contrast, Wide visual angle LCD display, white backlight;
• Dual-display: Main display 80000, Vice-display 80000, analog bar 21 sect., unit, function symbol complete;
• 50 kinds of measuring function, With basicly DCV, ACV, DCA, ACA, Ω, CAP, Hz, TEMP, diode and Continuity measuring function etc;
• Frequency measuring can rearch 80MHz;
• Standard function generator:18 kinds of frequency,1%-99% Duty cycle,1800 pcs wave output;
• Single analyzed:(AC+DC) measuring synchronous, (AC+Hz) measuring synchronous, (DC+dBm) measuring synchronous, (dBm+Hz) measuring synchronous, (Hz+Duty) measuring synchronous, (°C+°F) displaying synchronous;
• Resistance measuring: 0.01Ω-80MΩ;
• Capacitance measuring: 10PF-100μF;
• Temperature measuring: -50°C-1372°C,-58°F-2502°F;
• dBm measuring: 20pcs load Resistance choice;
• Auto data refurbish hold;
• positive, negative peak data auto hold;
• 36 hours dynamic record: MAX, MIN, AVG, MAX-MIN;
• Relative measuring: REL△ Relative percent: REL%;
• 0.1%-99.9%pulse duty cycle measuring;
• Set upper limit, lower limit area measuring;
• Photoelectricity insulation RS-232 computer interface;
• Timing measuring function;
• AC measuring adopt High accuracy RMS, Widely measuring and AC+DC function, can measuring the accuracy virtual value of AC by any wave.
Specifications:
Basic function |
Range |
Accuracy |
|
DCV |
80mV/800mV/8V/80V/800V/1000V |
+/-(0.05%+5) |
|
ACV |
80mV/800mV/8V/80V/750V |
+/-(0.5%+10) |
|
DCA |
80mA/800mA/8A/20A |
+/-(0.1%+5) |
|
ACA |
80mA/800mA/8A/20A |
+/-(0.5%+5) |
|
Resistance |
800Ω/8kΩ/80kΩ/800kΩ/8MΩ/80MΩ |
+/-(0.05%+3) |
|
Frequency |
80Hz/800Hz/8kHz/80kHz/800kHz/8MHz/80MHz |
+/-(0.03%+2) |
|
Capacitance |
10nF/100nF/1uF/10uF/100uF |
+/-(2.0%+3) |
|
Temperature |
-50°C~1372°C / -58°F~2502°F |
+/-(1.5%+2) |
|
Quadrate Wave |
3V / 0.5Hz~5kHz / 1%~99% |
+/-0.02% |
|
Feature |
VC8145 |
||
Diode |
Yes |
||
AC+DC measuring |
Yes |
||
Continuity test |
Yes |
||
Overloading protection |
Yes |
||
Input Impedance |
10MΩ |
||
Sampling frequency |
4times/sec. Analog bar40 times/sec. |
||
AC frequency response |
40Hz-50kHz |
||
Operation way |
Auto range |
||
Max display |
80000 |
||
Computer interface |
photoelectricity insulation RS-232 |
||
Power |
AC220V/110V 50Hz/60Hz |
||
Other Specifications: |
|
||
Colour |
cream-colored |
||
N.W. |
1.5kg |
||
Dimension |
250× 220× 82mm |
||
Accessories |
Test leads, power cable, manual, , TP01 temperature probe |
||
Standard inner package |
Gift box |
||
G.W |
13kg |
||
