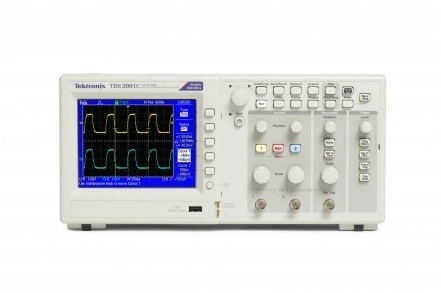

Tektronix TDS2004C Digital Storage Oscilloscope

SKU: Tektronix TDS2004C Digital Storage Oscilloscope

Tektronix TDS2004C Digital Storage Oscilloscope

Performance you need at a price you can afford

The TDS2000C Oscilloscope Series provides you with affordable performance in a compact design. Featuring Tektronix proprietary technology, the digital real-time sampling architecture means you can accurately see small signal details. Every model is packed with standard features; including USB connectivity, 16 automated measurements, limit testing and built-in help menu. Get more done in less time with the TDS2000C Oscilloscope Series

Overview

Features Benefits
Digital real-time sampling Accurately capture with at least 10x over-sampling on all channels, all the time with Tektronix proprietary sampling technology.
Built-in analysis tools Simplify analysis of your device with 16 automated measurements, FFT analysis, waveform math and cursors
Waveform limit testing Eliminate mistakes with the pass/fail summary table that clearly shows how many waveforms are within the limits of your specified template
Help menu Get the help you need - when and where you need it - with the built-in, context-sensitive help system.
Dedicated front-panel controls Spend less time learning and more time on your task with easy-to-use front-panel Affordable performance, compact design. 10x oversampling, USB connectivity, 16 automated measurements.
Front-panel USB host port Quickly store and transfer your waveforms and settings.
USB PC connectivity Easily connect to a personal computer with the rear-panel USB device port. Use Nl LabVIEW Signal Express software to control your scope, log data, and to simply transfer and document your results.
Bright color display See your waveform and measurement results at a distance, at an angle or under dim lighting with the bright, active color display

Specification

Tektronix TDS2004C Digital Storage Oscilloscope
Display (QVGA LCD) TFT
Bandwidth 70 MHz
Channels 4
External Trigger Input
Record Length 2.5k points at all time bases on all models
Vertical Resolution 8 bits
Vertical Sensitivity 2 mV to 5 V/div on all models with calibrated fine adjustment
DC Vertical Accuracy ±3% on all models
Vertical Zoom                     Vertically expand or compress a live or stopped waveform
Maximum Input Voltage           300 VRMS CAT II; derated at 20 dB/decade above 100kHz to to 1 Vp-p AC at 3 MHz
Position Range

2 mV to 200 mV/div +2 V

>200 mV to 5 V/div +50 V
Bandwidth Limit 20 MHz for all models
Input Coupling AC, DC, GND on all models
Input Impedance 1 MΏ in parallel with 20 pF
Time Base Range        5 ns to 50 s/div
Time Base Accuracy 50 ppm
Horizontal Zoom Horizontally expand or compress a live or stopped waveform
I/O Interfaces
USB  Ports

USB host port on front panel supports USB flash drives

USB device port on back of instrument supports connection to PC and all PiciBridge-compatible printers
GPIB Optional
Nonvolatile Storage
Reference Waveform Display (2) 2.5k point reference waveforms
Maximum  USB Flash Drive Size 64 GB
Waveform Storage with USB Flash Drive 96 or more reference waveforms per 8 MB
Setups without USB Flash Drive 10 front-panel setups
Setups with USB Flash Drive 4000 or more front-panel setups per 8 MB
Screen Images with USB Flash Drive 128 or more screen images per 8 MB (the number of images depends on file format selected)
Save All with USB Flash Drive

12 or more Save All operations per 8 MB

A single Save All operation creates 3 to 9 files (setup, image, plus one file for each displayed waveform)
