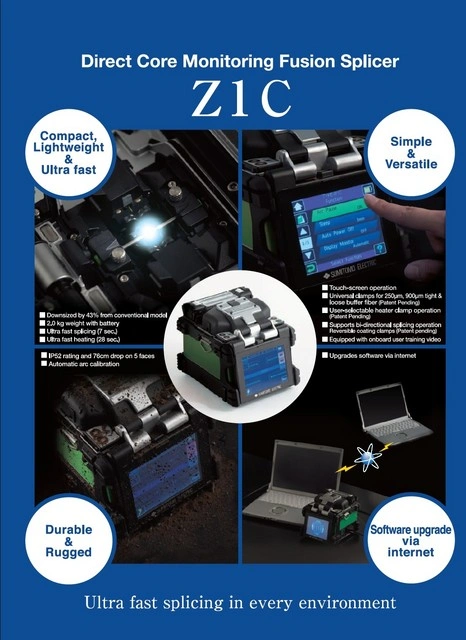

 Sumitomo Z1C Fusion Splicer images

  • Sumitomo Z1C Fusion Splicer images
  • Sumitomo Z1C Fusion Splicer images

Pin It


Sumitomo Z1C Fusion Splicer

SKU: Sumitomo TYPE- Z1 C

Sumitomo Z1C Fusion Splicer

The Sumitomo TYPE- Z1 C Fusion Splicer is the updated version of the Sumitomo T39 fusion splicer

• Downsized by 43% from conventional model

• 2.1kg weight with battery

• Ultra fast splicing(7sec.)

• Ultra fast heating(28sec.)

• G.657 fiber auto splicing function

• IP52 rating and 76cm drop on 5 faces

• Automatic arc calibration

• Touch screen operation

• Universal clamp for 250µm,900µm tight and loose buffer fiber

• User selectable heater clamp operation

• Support bi-directional splicing operation

• Equipped with onboard training vedio

• Upgrades software via internet



Specifications:

Items

Z1C



Material

Silica Glass

Optical Fiber requirements

Profile Types

SMF (ITU-T G.652), MMF (ITU-T  G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655)



Fiber diameter

Cladding diameter:  80µ~150µ, Coating diameter: 100µ~1000µ



Applicable fiber or cable size

Up to Φ 1000µ

Drop cable (2.0x3.1mm), Indoor cable (2.0x2.0mm)



Cleave length

5~16mm

10mm



Splice Loss (typical)  : When the fibers used are identical to Sumitomo's fibers)

SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04.dB



Splicing cycle time (typical)

7 sec. (quick mode), 7.5sec. (SMF standard mode), 8 sec. (Auto mode)

Standard Performance

Heating cycle time (typical)

28 sec



Splice & Heat cycles: (Splice & Heat cycles may vary depending on battery status and the operating environment)

Approx. 100



Fiber view & magnification

Two CMOS cameras observation, 320X (zoo: 700X) for X or Y single axis view, 88X for both X & Y dual axis view

Programs

Splicing programs

Max. 300



Heating programs

Max. 100



Loss estimation

Provided



Splice image capture/Splice data storage

64 images/ 10 000 splice data



Proof test

1.96N (200gf)



Attenuation splicing

-



Universal clamps for 250µ, 900µ tight & loose buffer fiber

Provided



Reversible coating clamps

Provided

Functions

Dual automatic independent heaters

-



User-selectable heater clamp operation

Provided



Onboard user training video

Provided



Automatic arc calibration

Automatically compensates for environmental condition changes



Arc test

Provided



Display of remaining Splice & Heat cycles

-



Remote interactive maintenance

-



Size

120(W) x 154(D) x 130(H) mm (without anti-shock rubber

Size/Weight

Weight

1.8kg (without battery), 2.0kg (with battery)



Monitor

4.1" touch screen colour LCD display



DC output

DC12 V  (for JR-6)

Terminals

USB port

USB 2.0 (mini-B type)



Storage media

SD/SDHC memory card



AC input

100~240V, 50/60Hz (ADC-1430)

Power supply

DC  input

10~15V



Battery module

Li-ion 11.1V, 2,300 mAh (BU-11S)

Operating condition

Altitube  0~6,000m, Temperature -10~+50℃, Humidity 0~95% (non-condensing), Wind velocity up to 15m/s

Storage condition

Temperature -40~+80℃, Humidity 0~95% (non-condensing), Battery -20~+30℃ (long term)

Electrode life

3,000 arc discharges (Electrode life may vary  depending on the operating environment)



Environmental Durablity*:



Test details

Shock resistance

Drop from 76cm on 5 faces (excluding top face)

Water resistance

Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5min on each of 4 surfaces tilted at 15 degrees )

Dust resistance

Equivalent to IP5x (Operates noramally after 8 hours in a dust chamber dust particle size 75µ or below



*Confirms the batttery operation in tests carrried nout by Sumitomo. Does not guarentee that the product is free of faults or damage.



Standard Package:

Part Name

Part No.

Qty.

Main unit

Z1C

1 pc

Battery Module

BU-11S

1 pc

Power supply module

ADC-1430

1 pc

Power cord

PC-AC

1 pc

Cooling tray

-

1 pc

Spare electrode

ER-10

1 pair

Operating CD manual

-

1 pc

Quick reference guide

-

1 pc

Carrying case with workable

CC-81

1 pc

Hand strap

-

1 pc



Optional Accesories:



Part name

Part No.

Remarks



Car battery cable

PCV-11

For car battery operation (Cigarette socket type)

Optional accessories

Battery charger

BC-11

Available soon

For main unit

V-groove cleaning brush

VGT-1





Electrode

ER-10







FHS-025

For ᶲ0.25mm single fiber



Fiber holder

FHS-09

For ᶲ0.9mm single fiber





1SM-D

For drop cable (Cable size: typical 2.0 x 3.1mm)





1SM-ST

For indoor cable (Cable size : typical 2.0 x 2.0mm)



Handheld fiber cleaver

FC-7R-S

Cleave length 6~20mm (ᶲ0.25mm), 10~20mm (ᶲ0.9mm)



Fiber cleaver

FC-6S-C

Cleave length 5~16mm (ᶲ0.25mm), 10mm (ᶲ0.9mm)





FC-6S-5C

Cleave length 5~16mm (ᶲ0.25mm & ᶲ0.9mm)





FC-6RS-C

Cleave length 5~16mm (ᶲ0.25mm), 10mm (ᶲ0.9mm)

Other Accessories



FC-6RS-5C

Cleave length 5~16mm (ᶲ0.25mm & ᶲ0.9mm)



Jacket remover

JR-M03

Jacket remover for single fiber



Alcohol dispenser

HR-3







FPS-1

60mm, sleeve diameter after shrink approx. ᶲ3.2mm





FPS-40

40mm, sleeve diameter after shrink approx. ᶲ3.2mm



Fiber protection sleeve

FPS-S-40

40mm, sleeve diameter after shrink approx. ᶲ2.2mm





FPS-D60

For drop cable & indoor cable, 60mm, sleeve diameter after shrink approx. ᶲ4.7mm





FPS-N4-X

FPS-N9-X

Available for Sumitomo Nano sleeves for factory and optical component
