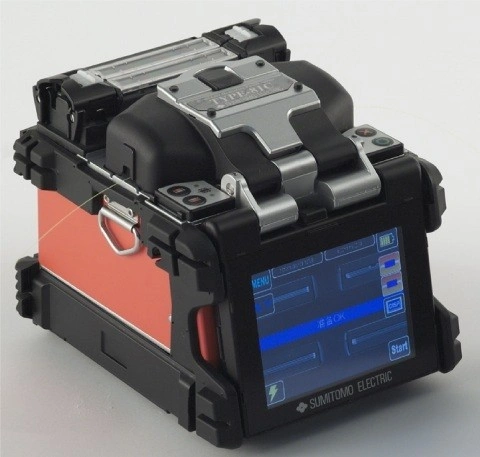

Sumitomo Type-81C

SKU: Sumitomo Type-81C

Sumitomo Type-81C



Product Description

Type -81-C Direct Core Monitoring Fusion Splicer

Remote intractive maintanance via internet



Features

• Downsized by 43% from conventional model

• 2.1kg weight with battery

• Ultra fast splicing(7sec.)

• Ultra fast heating(28sec.)

• G.657 fiber auto splicing function

• IP52 rating and 76cm drop on 5 faces

• Automatic arc calibration

• Touch screen operation

• Universal clamp for 250 Microm,900 Microm tight and loose buffer fiber

• User selectable heater clamp operation

• Support bi-directional splicing operation

• Equipped with onboard training vedio

• Upgrades software via internet



Specifications

Items

Tyoe-81C





Optical fiber

requirements

Material

Silica Glass

Profile types

SMF (ITU-TG.652), MMF (ITU-TG.651), DSF (ITU-TG.655), BIF (ITU-TG.657), EDF

Fiber diameter

Cladding diameter: 80µm~150 µm, Coating diameter: 100 µm~1,000 µm

Applicable fiber or cable size

Up to ø 1,000 µm

Drop cable (2.0 x  3.1mm), Indoor cable (1.6  x  2.0)

Cleave length

5 ~16 mm

10MM





Standard

Performance

Splice loss (typical) ∎ 1

SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB

Splicing cycle time (typical)

7sec. (Quick mode), 7.5sec. (SMF standard mode), 8 sec. (Auto mode)

Heating cycle time (typical)

28sec.

Splice & Heat cycles ∎ 2

Approx. 200

Fiber view & magnification

Two CMOS cameras observation, 320X (zoom: 700X) for X or Ysingle axis view, 88X for both X & Y dual axis view



Programs

Splicing programs

Max. 300

Heating programs

Max. 100













Functions





































Loss estimation

Provided

Splice image capture/Splice data storage



64 images/ 10,000 splice data

Proof test

1.96N (200gf)

Attenuation

Splicing

0.1dB to 15dB in 0.1dB increments

Universal clamps for 250 µm, 900 µm tight & loose buffer fiber





Provided

Reversible coating clamps

Provided

Dual automatic independent heaters



Provided (US patent 7,412, 146)

User-selectable heater clamp operation

Provided

Onboard user training video

Provided

Automatic arc calibration

Automatically compensates for environmental condition changes

Arc test

Provided

Display of remaining Splice & Heating cycles





Provided (Battery mode)

Remote interactive maintenance



Provided







Size/weight

Size

120(W) x 154(D) x 130(H)mm (without anti-shock rubber)

Weight

1.8kg (without battery)

Monitor

4.1" touch screen colour LCD display



Terminals

DC output

DC12 V (for JR-6)

USB port

USB 2.0

Storage media

SD/SDHC memory card



Power supply

AC input

100~240V, 50/60Hz (ADC-1430)

DC input

10~15V

Battery module

Li-ion 11.1V, 4,600mAh (BU-11)

Operating condition

Altitude 0~6,000m, Temperature -10°C~+50°C, Humidity 0~95% (non-condensing), Wind velocity up to 15m/s

Storage condition

Temperature -40°C~+80°C, Humidity 0~95% (non-condensing), Battery -20°C~+30°C (long term)

Electrode life

3,000 arc discharges ∎ 3





∎1: When the fibers used are identical to Sumitomo's fibers. ∎2: Splice & Heat cycles may vary depending on the battery status and the operating environment. ∎3 Electrode life may vary depending on operating environment.



Environmental Durability ∎



Test details

Shock resistance

Drop from 76cm on 5 faces (excluding top face)

Water resistance

Equivalent IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5min on each of 4 surfaces tilted at 15°)

Dust resistance

Equivalent to IP5x (Operates normally after 8 hours in a dust chamber containing dust of particle size 25µm or below)



∎ Confirms the battery operation in tests carried out by Sumitomo. Does not guarantee that the product is free of faults or damage.



Standard Package

Part name

Part No.

Quantity

Main unit

TYPE-81C

1 pc

Battery module

BU-11

1 pc

Power supply module

ADC-1430

1 pc

Power cord

PC-AC

1 pc

Cooling tray

-

1 pc

Spare electrode

ER-10

1 pair

Operating CD manual

-

1 pc

Quick reference guide

-

1 pc

Carrying case with worktable

CC-81

1 pc

Hand strap

-

1 pc

USB cable

-

1 pc



Optional Accesories









Optional accessories

For the main unit

Part name

Part No.

Remarks

Car battery cable

PCV-11

For car battery operation

Battery Charger

BC-11



V-groove cleaning brush

VGT-1



Electrode

ER-10







Fiber holder

FHS-025

For ø0.25mm single fiber

FHS-09

For ø0.9mm single fiber

1SM-D

For drop cable (Cable size: typical 2.0 x 3.1mm)

1SM-ST

For indoor cable (Cable size: typical 1.6 x 2.0mm)









Other

Accessories









Handheld fiber

cleaver

FC-7R-S

Cleave length 6~20mm (ø0.25mm), 10~20mm (ø0.9mm)

FC-7S

Cleave length 6~20mm (ø0.25mm), 10~20mm (ø0.9mm)



Fiber cleaver

FC-6S-C

Cleave length 5~16mm (ø0.25mm), 10mm  (ø0.9mm)

FC-6S-5C

Cleave length 5~16mm (ø0.25mm  & ø0.9mm)

FC-6RS-C

Cleave length 5~16mm  (ø0.25mm), 10mm  (ø0.9mm)

Jacket remover

JR-M03

Jacket remover for single fiber

Alcohol dispenser

HR-3





Fiber protection

sleeve

FPS-1

60mm, sleeve diameter after shrink approx ø3.2mm

FPS-40

40mm, sleeve diameter after shrink approx ø3.2mm

FPS-S-40

40mm, sleeve diameter after shrink approx ø2.2mm

FPS-D60

For drop cable & indoor cable.

60mm, sleeve diameter after shrink approx ø4.7mm

FPS-N4-X

FPS-N9-X

Available for Sumitomo Nano sleeves for factory

And optical component
