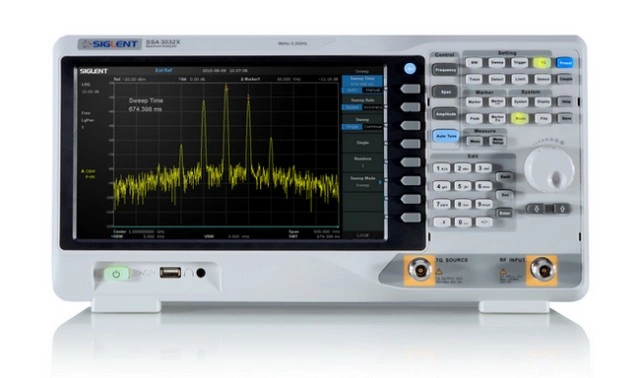

 SSA3000X Series Spectrum Analyzers images




SSA3000X Series Spectrum Analyzers

: SSA3000X Series Spectrum Analyzers

Product Overview

Siglent’s SSA3000X family of spectrum analyzers offer a frequency range of 9 KHz to 2.1 GHz / 3.2 GHz. With their light weight, small size, and friendly user interface, the SSA3000s present a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications are many, but include research and development, education, production, maintenance, and many more.


Key Features

◆ All-Digital IF Technology

◆ Frequency Range from 9 kHz up to 3.2 GHz

◆ -161 dBm/Hz Displayed Average Noise Level (Typ.)

◆ -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)

◆ Total Amplitude Accuracy < 0.7 dB

◆ 10 Hz Minimum Resolution Bandwidth (RBW)

◆ Standard Preamplifier

◆ Up to 3.2 GHz Tracking Generator Kit (Opt.)

◆ Reflection Measurement Kit (Opt.)

◆ Advanced Measurement Kit (Opt.)

◆ EMI Pre-compliance Measurements Kit (Opt.)

◆ 10.1 lnch WVGA(1024x600)Display


Ordering Information

Product Model

SSA3032X, Spectrum Analyzer, 9 kHz~3.2 GHz

SSA3021X, Spectrum Analyzer, 9 kHz~2.1 GHz

Standard Accessories
Quick Start -1
Product Certification -1
USB Cable -1
Power Cord -1
Calibration Certificate -1
CD (Including Quick Start, Data Sheet and Application Software) -1
Optional Accessories
EMI-SSA3000X  EMI Measurement Kit (Software)
AMK-SSA3000X Advanced Measurement Kit (Software)
Refl-SSA3000X Reflect Measurement Kit (Software)
TG-SSA3000X Tracking Generator Kit (Software)
UKitSSA3X Utility Kit: N (M) -SMA (M) cable, N (M) -N (M) cable, N (M) -BNC (F) adaptor (2 pcs), N (M) -SMA (F) adaptor (2 pcs), 10 dB attenuator
RBSSA3X20 VSWR Bridge Kit:including Refl-SSA3000X,VSWR Bridge(1 MHz~2 GHz),N(M)-N(M) adaptor(2 pcs)
SRF5030 Near Field Probe:H field probe(25 mm, 10 mm, 5 mm, 2mm) , 30 MHz~3.0 GHz
N-SMA-6L N(M)-SMA(M) cable
N-N-6L N(M)-N(M) cable
N-BNC-2L N(M)-BNC(M) cable
BAG-SCC Soft carrying bag
