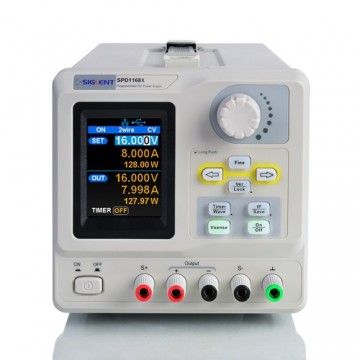

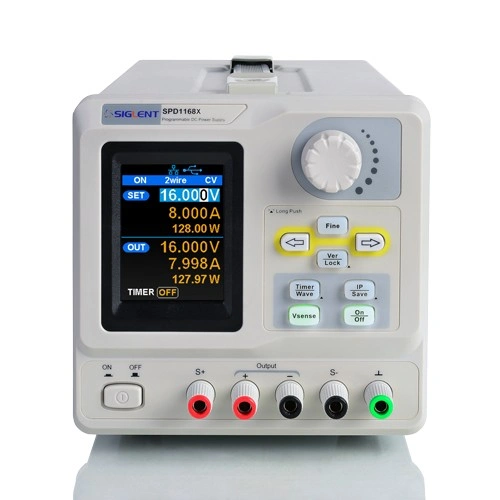

 SPD1000X Series Programmable DC Power Supply images




SPD1000X Series Programmable DC Power Supply

: SPD 1305X /SPD1168X

Description

Product Overview


SPD1000X Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability,  and real time wave display, to deliver high performance and ease-of-use. The SPD1168X features a high precision programmable output capable of delivering up to 16 V ,theSPD1305X features a high precision programmable output capable of delivering up to 30 V and also includes a 4-wire sense function for more accurate voltage sourcing, especially for long leads or high resistance connections. There are additional output short and overload protect functions to assist in production and development applications.



Key Features


  • ▶ Single path high-precision programmable voltage output:
  •     SPD1168X——16 V/8 A,total power up to 128 W
  •     SPD1305X——30 V/5 A,total power up to 150 W
  • ▶ Stable, reliable, Low ripple and noise:≤ 350 uVrms/3 mVpp; < 2 mArms
  • ▶ Fast transient response time: < 50 μs
  • ▶ 5 digit Voltage, 4 digit Current Display, Minimum Resolution: 1 mV/1 mA
  • ▶ Supports front panel timing output functions
  • ▶ 2.8 inch true color TFT- LCD 240 *320 display
  • ▶ 2 types of output modes:Two-wire output mode, 4-wire compensation output mode,Maximum compensation voltage 1V
  • ▶ 100/120/220/230 V compatible design to meet the needs of different power grids
  • ▶ Intelligent temperature-controlled fanreduces noise
  • ▶ Clear graphical interface, with the waveform display function
  • ▶ Internal 5 groups of system parameter save/recall
  • ▶ Includes PC software: Easypower, supports SCPI, LabView driver



Characteristics


▶ High-resolution and high-precision output

The SPD1000X power supply features a high measurement resolution of 1mV/1mA . This ensures accurate output even with very with small changes in voltage or current. This is impossible for a low resolution power supply.




▶ 4-wire SENSE compensation mode function

In the 4-wire SENSE compensation output mode: By using a separate measurement circuit, the supply can more accurately compensate for any voltage drops due to high resistance connections or long cables. Maximum compensation voltage is 1V
Product No :

Product information

SPD1168X

SPD1305X

Single path independent output, min resolution 1 mV/1 mA, USB Device & LAN, 2.8 inch LCD display

Standard Accessories

USB Cable -1

Quick Start -1

Calibration Certificate -1

Power cord -1

Output Test Cord -2 Sets

《SPD1000X Series Programmable DC Power Supply Datasheet》

011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Power Supplies

Manufacturer: Siglent

Product code - SKU: SPD 1305X /SPD1168X
