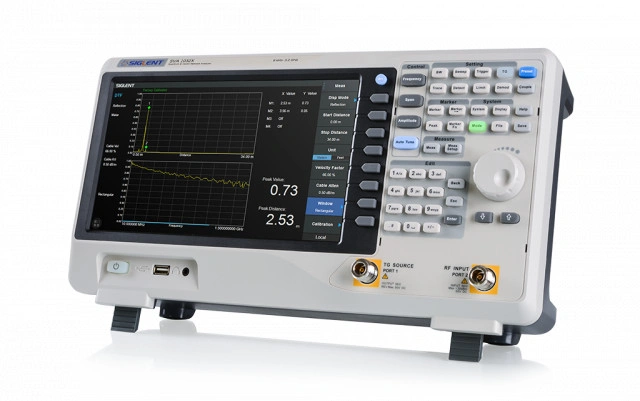

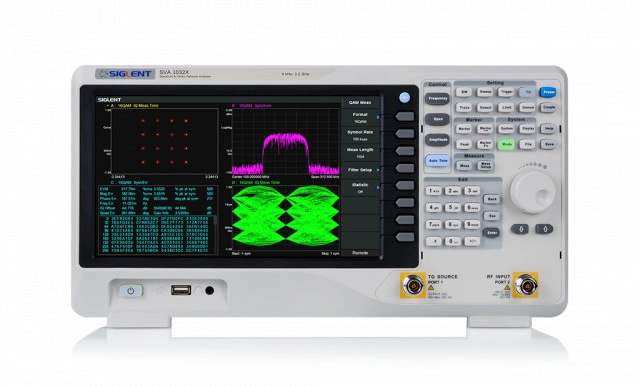

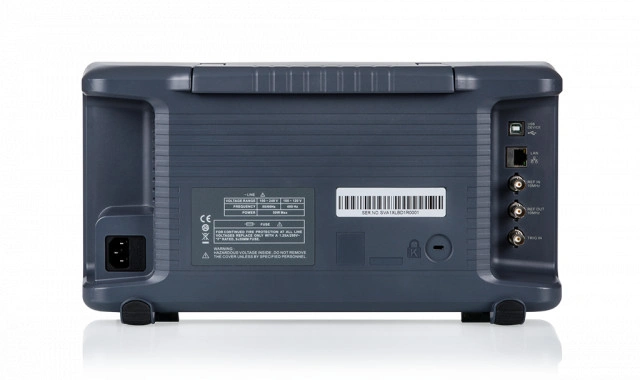

 Siglent SVA1032X 3.2GHz Spectrum & Vector Network Analyzer images

  • Siglent SVA1032X 3.2GHz Spectrum & Vector Network Analyzer images
  • Siglent SVA1032X 3.2GHz Spectrum & Vector Network Analyzer images
  • Siglent SVA1032X 3.2GHz Spectrum & Vector Network Analyzer images



Siglent SVA1032X 3.2GHz Spectrum & Vector Network Analyzer

: Siglent SVA1032X

Product Description

Siglent SVA1032X 9 kHz - 3.2 GHz with VNA and tracking generator included is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 3.2 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation.

The base model are a spectrum analyzer and a vector network analyzer, optional functions include a distance-to-fault locator, a vector signal analyzer. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

Key Features:

  • Tracking Generator Standard
  • Distance To Fault (Opt.)
  • Vector Network Analyzer function (included after 9/23/2019)
  • EMI Filter and Quasi-Peak Detector Kit (Opt.)
  • Advanced Measurement Kit (Opt.)
  • 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation
Model Overview SVA1015X VNA SVA1032X VNA SSA3021X SSA3032X
Max. Bandwidth 1.5 GHz 3.2 GHz 2.1 GHz 3.2 GHz
Resolution bandwidth (RBW) 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence
Display average noise level (DANL), min. -156 dBm/Hz Displayed Average Noise Level -161 dBm/Hz Displayed Average Noise Level -161 dBm/Hz, Normalize to 1 Hz (typ.) -161 dBm/Hz, Normalize to 1 Hz (typ.)
Preamplifier YES YES YES YES
Tracking Generator YES YES YES YES
Vector Network Analysis YES YES NO NO
Distance To Fault Option Option NO NO
Modulation Analysis Option Option NO NO
EMI Pre-compliance Test Kit Option Option Option Option
Advanced Measurement Kit Option Option Option Option
Multi-Touch Screen YES 10.1" LCD YES 10.1" LCD NO Touch 10.1" LCD NO Touch 10.1" LCD

Accessoires Included:

1 x Siglent SVA1032X 9 kHz - 3.2 GHz with VNA and TG included
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide
