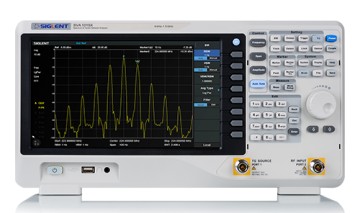

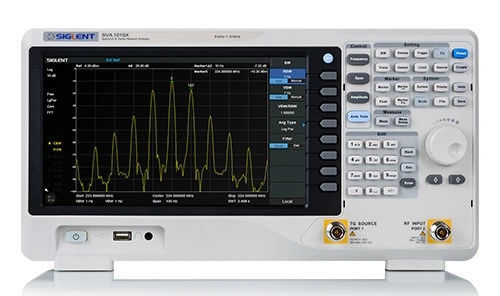

Siglent SVA1015X -Spectrum & Vector Analyzer, 9 kHz~1.5 GHz

SKU: Siglent SVA1015X -Spectrum & Vector Analyzer, 9 kHz~1.5 GHz

Product Description

The SIGLENT SVA1000X series spectrum & vector network analyzers are powerful and flexible tools for broadcast and RF device testing. With a wide frequency range from 9 kHz to 1.5 GHz, the analyzer delivers reliable automatic measurements and plenty of features including a tracking generator and multiple modes of operation: the base model is a swept super-heterodyne spectrum analyzer and optional functions include a vector network analyzer, a Frequency Domain Reflectometer based distance-to-fault locator, and a modulation analyzer. Applications include broadcast monitoring/evaluation, site surveying, EMI pre-compliance, research and development, education, production and maintenance.

Key Features

◆ All-Digital IF TechnologyAll-Digital IF Technology

◆ Frequency Range from 9 kHz to 1.5 GHz

◆ -156 dBm/Hz Displayed Average Noise Level (Typ.)
◆ -99 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
◆ Level Measurement Uncertainty < 1.2 dB (Typ.)
◆ 1 Hz Minimum Resolution Bandwidth (RBW)
◆ Preamplifer Standard
◆ Tracking Generator Standard
◆ Vector Network Analysis (Opt.)
◆ Distance To Fault (Opt.)
◆ Modulation Analysis (Opt.)
◆ EMI Pre-compliance Test Kit (Opt.)
◆ Advanced Measurement Kit (Opt.)

◆ 10.1 lnch (1024x600) Multi-Touch Screen, Mouse and Keyboard supported
◆ Web Browser Remote Control on PC and Mobile Terminals
