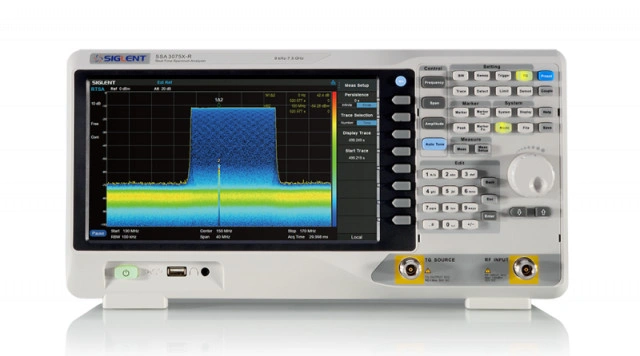

 Siglent SSA3050X-R 5GHz Real Time spectrum analyzer images


Siglent SSA3050X-R 5GHz Real Time spectrum analyzer

SKU: Siglent SSA3050X-R 5GHz Real Time spectrum analyzer

Product Description

The SIGLENT SSA3050X-R Real Time spectrum & vector network analyzer has a a capability of 40 MHz analysis bandwidth and 7.2 μs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. The Siglent SSA3050X-R also provides standard tracking generator for network analysis, optional wide band digital modulation analysis, and EMI measurement. Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.

SSA3050X-R Features and Benefits

  • Spectrum Analyzer Frequency Range from 9 kHz up to 5.0 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Preamplifier Standard
  • Tracking Generator Standard
  • Up to 40 MHz Real Time Analysis Bandwidth (Opt.)
  • 100% POI 7.20 μs, Dynamic Range 60 dB
  • Multi-view for Density, Spectrogram, PvT and 3D
  • Advanced Measurement Kit (Opt.)
  • Reflection Measurement Kit (Opt.)
  • Modulation Analysis Mode (Opt.)
  • EMI Measurement Mode (Opt.)
  • 10.1 inch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and
  • File Operation

Real Time Analysis Mode

Density,3D,Spectrogram,PvT,Multi-view and dimensions to monitor complex signals

Modulation Analysis Mode

AM/FM, ASK/FSK/PSK/MSK/QAM Vector Signal Modulation Analysis and EVM evaluation, and Data recording to PC. The analysis BW is same with real-time BW in RTSA mode

EMI Measurement Mode

EMI Measurement with CISPR 16-1-1 EMI filter ,Quasi-peak Detector, and pre-stored standards.

Model SSA3050X-R
Frequency Range 9 kHz~5.0 GHz
Resolution Bandwidth 1 Hz~3 MHz
Displayed Average Noise Level -165 dBm/Hz
SSB Phase Noise <-98 dBc/Hz
Third-order intercept(TOI) +14 dbm
Total Amplitude Accuracy < 0.7 dB
Tracking Generator 100 kHz - 5.0 GHz
Real Time Band Width 25 MHz, 40 MHz (Option)
SFDR 60 dB
100% POI 7.20 μs
7.20 μs 7.20 μs
RTSA Measurement Density, Spectrogram, 3D, PvT
Touch Screen Multi Touch, Mouse and Keyboard supported
Advanced Measurement CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
Modulation Analysis AM, FM, ASK, FSK, MSK, PSK, QAM
Reflection Measurement VSWR measurement using Reflection Bridge
EMI Measurement EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line
Communication Interface LAN, USB Device, USB Host (USB-GPIB)
Remote Control Capability SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
Remote Controller NI-MAX, Web Browser, Easy Spectrum software, File Explorer

Accessoires Included:

1 x Siglent SSA3050X-R 9kHz - 5.0 GHz
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide
