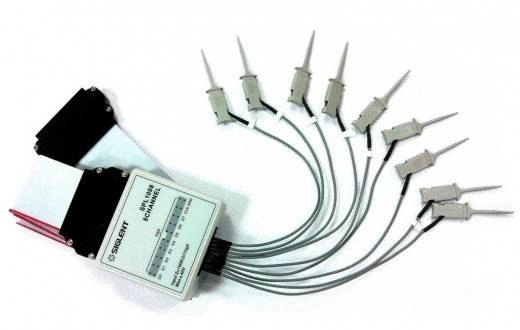

 Siglent SPL1008 8 Channel logic probe module with license key images




Siglent SPL1008 8 Channel logic probe module with license key

SKU: Siglent SPL1008

Product Description

Siglent SPL1008 logic analyzer probe for SDS2000 scopes with license key.

Parameters : SPL1008
Channels 8
Input Impedance 100 KΩ || 18 pF
Max. Input Voltage ±40 V peak
Threshold Groupings Pod 2: D15-D8 Pod 1: D7-D0
Threshold Selections TTL (1.5 V), COMS (1.65 V), 3.3 V_LVCOMS (1.65 V), 2.5 V_LVCOS (1.25 V)
User defined threshold range -3 V~3 V
Threshold Accuracy ±400 mV
Delay Window 600 mVpp
Min. Input Voltage Swing 800 mVpp
Input level Limit TTL (0 V≤VL≤0.8 V;2.4 V≤VH≤5 V) CMOS (0 V≤VL≤1.5 V;3.5 V≤VH≤5 V) 3.3 V_LVCOMS (0 V≤VL≤0.7 V;2 V≤VH≤3.3 V) 2.5 V_LVCOMS (0 V≤VL≤0.7 V;1.7 V≤VH≤2.5 V)
Cable length 80 CM±2 CM
Timing sampling rate 500 Mbps
Status sampling rate 60 Mbps
Minimum input slew rate 75 mV/μS TTL: 15 nS
Plus Width Resolution CMOS: 15 nS LVCMOS 3.3V: 15 nS

011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Logic Probes

Product code - SKU: Siglent SPL1008
