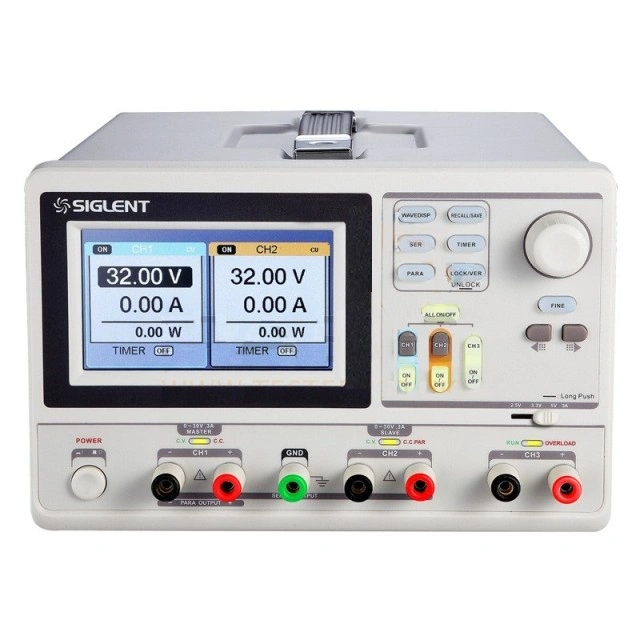

Siglent SPD3303S Power Supply

SKU: Siglent SPD3303S Power Supply

Siglent  SPD3303S Power Supply

Features and Benefits

• Separate control  and independent triple outputs: 30V/3A*2, 2.5V/3.3V/5V/3A*1, total 195W power

• 5 digits voltage ant 4 digits current display, min resolution: 1mV, 1mA

• Three output modes: independent, series and parallel connect, support timing output, waveform display and SCPI remote command

• 4.3inces TFT-LCD display with 480*272 high-resolution

• 100V/120V/220V/230V compatible design, to meet the need of different grid

• Smart temperature controlled fan, effectively reduce the noise

• Save/Recall 5 group system specifications, support data storage expansion



Specifications

Model

SPD3303D

SPD3303S

Channels

CH1: DC voltage range: 0-30V, DC current range: 0-3A

CH2: DC voltage range: 0-30V, DC current range: 0-3A

Ch3: DC voltage range: 2.5/3.3/5.0V, DC current range: 0-3A

Max output power

195W

Min voltage/current resolution

10mV 10mA

1mV 1mA

Voltage/Current display

4.3 inches TFT-LCD 480*272

4 digits voltage and 3 digits

current display

4.3 inches TFT-LCD 480*272

5 digits voltage and 4 digits

current display

Ripple noise

≤1mVrms (5Hz~1MHz)

Standard interface

USB Device

Dimension

210mm(W)x130mm(H)x265mm(D)

Weight

7Kg
