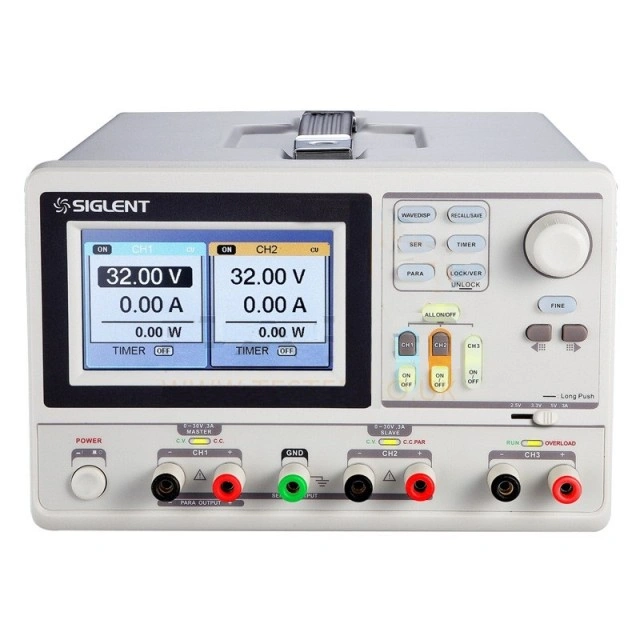

 Siglent SPD-3303D DC Power Supply images


Pin It


Siglent SPD-3303D DC Power Supply

SKU: Siglent SPD-3303D DC Power Supply

Siglent SPD-3303D DC Power Supply

Features and Benefits

  • Separate control and independent triple outputs: 30V/3A*2, 2.5V/3.3V/5V/3A*1, total 195W power
  • 5 digits voltage and 4 digits current display, min resolution: 1mV, 1mA
  • Three output modes: independent, series and parallel connect, support timing output, waveform display and SCPI remote command
  • 4.3 inches TFT-LCD display with 480*272 high-resolution
  • 100V/120V/220V/230V compatible design, to meet the need of different grid
  • Smart temperature controlled fan, effectively reduce the noise
  • Save/recall 5 group system specifications, support data storage expansion



Specifications

Model

SPD3303D

SPD3303S

Channels

CH1: DC voltage range: 0-30V, DC current range: 0-3A

CH2: DC voltage range: 0-30V, DC current range: 0-3A

CH3: DC voltage range: 2.5/3.3/5.0V, DC current range: 0-3A

Max output power

195W

Min voltage/current resolution

10mV  10mA

1mV 1mA

Voltage/Current display digits

4.3 inches TFT-LCD  480*272

 4 digits voltage and 3 digits current display

4.3 inches  TFT-LCD 480*272

5 digits voltage and 4 digits current display

Ripple noise

≤ 1mVrms (5Hz ~ 1MHz)

≤ 3mArms

Standard interface

USB Device

Dimension

210mm(W) x 130mm(H) x 265mm(D)

Weight

7Kg
