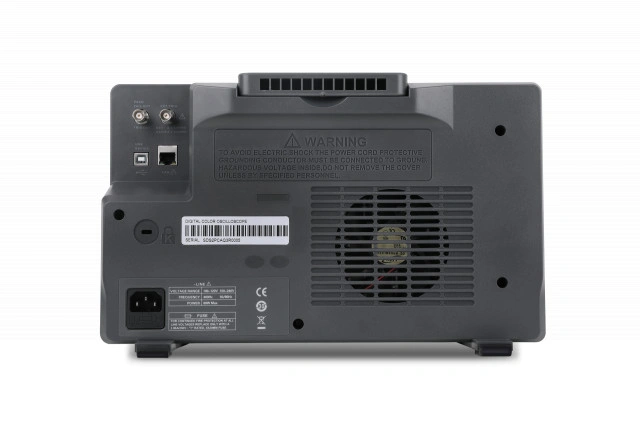

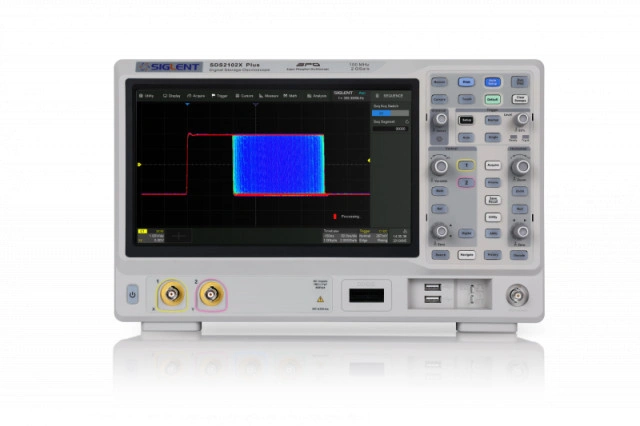

Siglent SDS2102X Plus 2Ch 100MHz 2GSa/s Oscilloscope

SKU: Siglent SDS2102X Plus 2Ch 100MHz 2GSa/s Oscilloscope

Product Description

Siglent SDS2102X Plus 2 Channel 100MHz 2 GSa/s osciloscope is the 3rd Generation of their 2000 series of oscilloscopes. Five years after Siglent introducuced the very successful SDS2000X. Siglent has continued to implement customer feedback and now presents SDS2000X Plus series. Designed to impress, the X Plus has a feature-rich standard configuration and options that make it a powerful and flexible tool for all general purpose tasks in the lab.

Bode Plot

The SDS2000X Plus can control the built-in waveform generator or any stand-alone SIGLENT SDG device to scan the amplitude and phase response over frequency of passive or active circuits. The data is presented as Bode Plot. This makes it possible to replace expensive network analyzers in less demanding applications.

Excellent Operability

  • 10.1" display with 1024x600 resolution.
  • Capacitieve touch screen, supports multi-touch gestures, traces can be moved or scaled efficiently by a finger touch.
  • Built-in web server supports remote control over the LAN port using a web browser.
  • External mouse and keyboard support

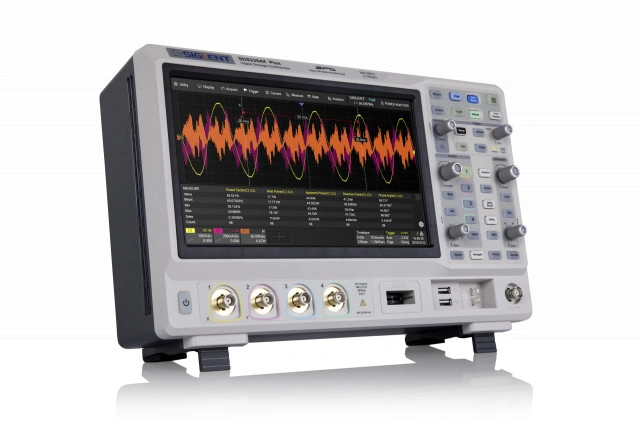

Power Analysis

The Power Analysis option provides a full suite of power measurements and analysis, thus improving the efficiency of
measurement in switching power supplies and power device
designs.



Key Features

  • 350 MHz, 200 MHz, 100 MHz models with real-time sample rate up to 2 GSa/s. A 500 MHz bandwidth upgrade option is available for 350 MHz models.
  • SPO technology
    • Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Record length up to 200 Mpts/ch, 400 Mpts in total for all 4 channels
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported). Trigger zone helps to simplify advanced triggering
  • Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, I2S, and MIL-STD-1553B (optional) protocols
  • Low background noise, features 0.5 mV/div to 10 V/div voltage scales
  • 10-bit mode provides higher resolution and lower noise
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function for up to 90,000 triggered waveforms (frames)
  • Automatic measurement function on 50+ parameters, supports statistics with histogram and trend
  • Two Math traces, support 2 Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor
  • Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter
  • 16 digital channels (optional)
  • Built-in 50 MHz waveform generator (optional)
  • Large 10.1” TFT-LCD display with 1024×600 resolution; Capacitive touch screen supports multi-touch gestures
  • Multiple interfaces: USB Host, USB Device (USBTMC), LAN(VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
  • Built-in web server supports remote control by the LAN port using a web browser; Supports SCPI remote control commands
