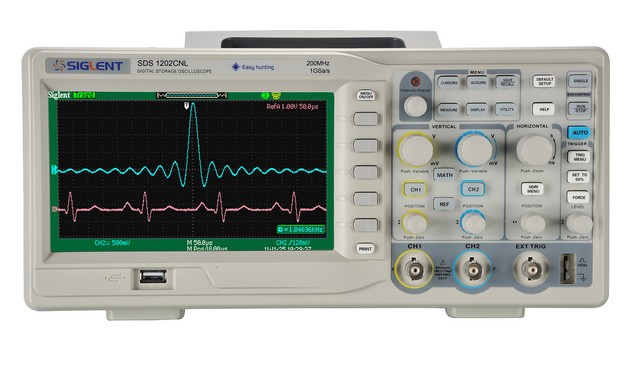

Siglent SDS1202CNL+ 200MHz 2 Channel
Features and Benefits:
● Up to 200MHz Bandwidth 1GSa/s sample rate
● 7''TFT-LCD display, 8*18 grids
● Channels: 2CH+1EXT
● Memory Depth: 40Kpts, 5Kpts/CH (SDS1202CNL)
● 6 digits hardware frequency counter, real time counting display
● Support SCPI programming command control
● Interface: USB Device, USB Host, RS-232, Pass/Fail
● Unique digital filter and data recorder function
● Embedded 12 languages, online help, one key storing and one key printing
Specifications
|
Model |
SDS1202CNL |
|
Bandwidth |
200MHz |
|
Channels |
2CH+1EXT |
|
Real time Sampling rate |
1GSa/s (each channel) |
|
Equivalent sampling rate |
50GSa/s |
|
Memory depth |
5kpts/CH |
|
Rise time |
< 1.7ns |
|
Input impedance |
1MΏ‖14pF, 50 Ώ |
|
Time base range |
2.5ns/div-50s/div |
|
Scan: 100ms-50s/div |
|
|
Vertical sensitivity |
2mV-5V/div |
|
Vertical resolution |
8bit |
|
Trigger source |
CH1, CH2, Ext, Ext/5, AC Line |
|
Trigger types |
Edge, Pulse, Video, Slope, Alternatives |
|
Math Operation |
+, -, x, ÷, FFT |
|
Digital filter |
High pass, Low pass, Band pass, Band Stop |
|
Max input voltage |
±400V(DC+AC Pk-Pk), CAT I, CAT II |
|
Internal Storage |
2 groups of reference waveform, 20 groups of settings, 20 groups of waveforms |
|
External storage |
Bitmap save, CSV save, Waveform save, Setting save |
|
Language |
English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic |
|
interface |
USB Host, USB Device, RS-232, Pass/Fail out |
|
Display |
7 inches (178mm) colour TFT (480*234) LCD |
|
Power |
AC 100-240V, 45Hz-440Hz, 50VA Max |
|
PC software |
Can through the computer remote control oscilloscope, extraction waveform analysis data |
|
Remark |
With original source seamless connection, from signal collection, produce integration system |
