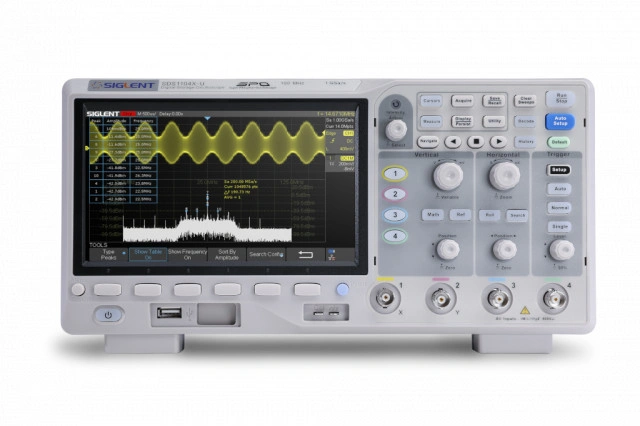

Siglent SDS1104X-U 100MHz Four channel oscilloscope

: Siglent SDS1104X-Uu





Product Description

SIGLENT’s SDS1000X-U Series Super Phosphor Oscilloscopes is available in one bandwidth, 100 MHz. It has a maximum sample rate of 1 GSa/s and a maximum record length of 14 Mpts. For ease of use, the most commonly used functions can be accessed with its user-friendly front panel design.

The SDS1000X-U series employs SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It comes with an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X U also employs a 256 level intensity grading display function and a color temperature display mode not found in other models in this class.

Another powerful addition is the new 128 k point FFT math function that gives the SDS1000X-U very high-frequency resolution when observing signal spectra. SDS1000X-U also supports searching and navigating. The features and performance of SIGLE NT’s new SDS1000X-U cannot be matched anywhere else in this price class.



Key Features

  • 100 MHz bandwidth
  • Real-time sampling rate up to 1 GSa/s
  • The newest generation of SPO technology
    • Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Record length up to 14Mpts
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
  • Serial bus triggering and decoding (Standard), supports protocols IIC, SPI, UART, CAN, LIN
  • Video trigger, supports HDTV
  • 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
  • Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user
  • Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
  • History waveform record (History) function (maximum recorded waveform length is 80,000 frames)
  • 128 k pts FFT, supports Peaks and Markers
  • Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square
    root)
  • Large 7 inch TFT LCD display with 800 * 480 resolution


128k points used to calculate the FFT

The new math co-processor enables FFT analysis of incoming signals using up to 128k samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Four-channel series support Peaks, Markers, a variety of numbers.

Waveform Capture Rate Up to 400,000 wfm/s

With a waveform capture rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture low-probability events.


Accessoires Included:

1 x Siglent SDS1104X-U Oscilloscope
4 x 100MHz probes
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide



Optional Accessories:
  • Siglent BAG-S1 Soft Carry Case
  • Siglent's STB-3 Oscilloscope Demo / Training Board
  • Siglent SDS1000X-E-RMK Rack Mount (SDS1000X-E, SDS2000X-E series)
  • Siglent ISFE Isolated Front End module


Specifications Download
