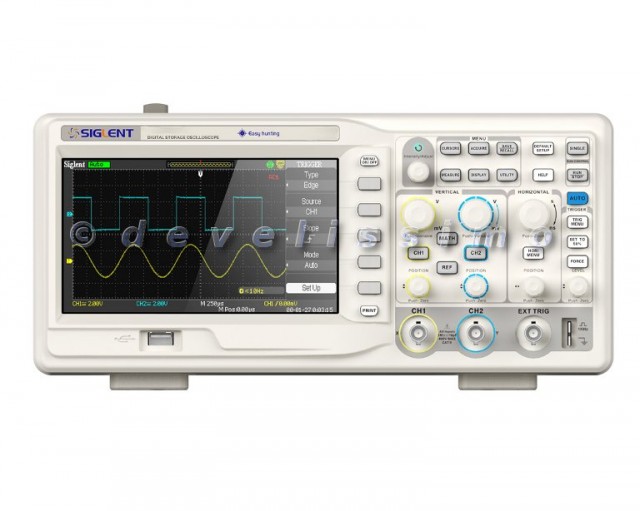

 Siglent SDS1102DL 100MHz images




Siglent SDS1102DL 100MHz

SKU: Siglent SDS1102DL

SDS1102DL 100MHz

Features and Benefits:

● Up to 200MHz Bandwidth 500MSa/s sample rate
● 7''TFT-LCD display, 8*18 grids
● Channels: 2CH+1EXT
● 500MSa/s samplinge rate, 32Kpts memory depth
● 6 digits hardware frequency counter, real time counting display
● Support SCPI programming command control
● Interface: USB Device, USB Host, RS-232, Pass/Fail
● Unique digital filter and data recorder function
● Embedded 12 languages, online help, one key storing and one key printing

Siglent oscilloscopes include :

2 x probe's
1 x EU power cord
1 x USB cable
1 x Manual
1 x CD with software

Specifications

Model

SDS1102DL

Bandwidth

100MHz

Channels

2CH+1EXT

Real time sampling rate

500MSa/s

Equivalent sampling rate

50GSa/s

Memory depth

32k

Rise time

< 3.5ns

Input impedance

1MΏ‖17pF

Time base range

5ns/div-50s/div

Scan: 100ms-50s/div

Vertical sensitivity

2mV-10V/div

Vertical resolution

8bit

Trigger source

CH1, CH2, Ext, Ext/5, AC Line

Math Operation

+, -, x, ÷, FFT

Digital filter

High pass, Low pass, Band pass, Band Stop

Max input voltage

±400V (DC+AC Pk-Pk), CAT 1, CATII

Internal Storage

2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms

External storage

Bitmap save, CSV save, Waveform save, Setting save

Language

English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic

Interface

USB Host, USB Device, RS-232, Pass/Fall out

Display

7 inches (178mm) colour TFT (480*234) LCD

Power

AC 100-240V, 45Hz-440Hz, 50VA Max

PC software

Can through the computer remote control oscilloscope, extraction waveform analysis data

Remark

With original source seamless connection, from signal collection, produce integration system
