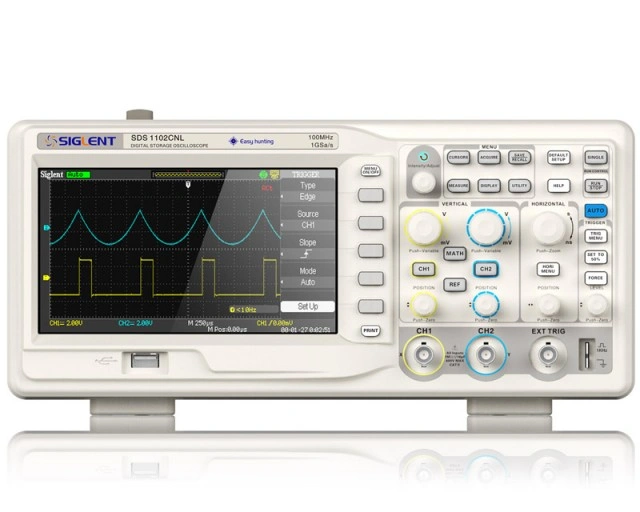

Siglent SDS1102CNL 100MHz 2 Channel

SKU: Siglent SDS1102CNL 100MHz 2 Channel

SDS1102CNL 100MHz 2 Channel

Features and Benefits:

● Up to 200MHz Bandwidth 1GSa/s sample rate
● 7''TFT-LCD display, 8*18 grids
● Channels: 2CH+1EXT
● Memory Depth: 40Kpts, 5Kpts/CH (SDS1202CNL)
● 6 digits hardware frequency counter, real time counting display
● Support SCPI programming command control
● Interface: USB Device, USB Host, RS-232, Pass/Fail
● Unique digital filter and data recorder function
● Embedded 12 languages, online help, one key storing and one key printing

Specifications

Model	SDS1102CNL
Bandwidth	100MHz
Channels	2CH+1EXT
Real time sampling rate	1GSa/s
Equivalent sampling rate	50GSa/s
Memory depth	40kpts
Rise time	< 3.5ns
Input impedance	1MΏ‖17pF
Time base range	2.5ns/div-50s/div
Time base range	Scan: 100ms-50s/div
Vertical sensitivity	2mV-10V/div
Vertical resolution	8bit
Trigger source	CH1, CH2, Ext, Ext/5, AC Line
Trigger types	Edge, Pulse, Video, Slope, Alternative
Math Operation	+, -, x, ÷, FFT
Digital filter	High pass, Low pass, band pass, Band stop
Max input voltage	±400V (DC+AC Pk-Pk), CAT I, CAT II
Internal storage	2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms
External storage	Bitmap save, CSV save, Waveform save, Setting save
Language	English, French, German, Russian, Spanish, Simplified Chinese, traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic
Interface	USB Host, USB device, RS-232, Pass/Fail out
Display	7inches (178mm) colour TFT (480*234) LCD
Power	AC 100-240V, 45Hz-440Hz, 50VA Max
PC software	Can through the computer remote control oscilloscope, extraction waveform analysis data
Remark	With original source seamless connection, from signal collection, produce integration system
