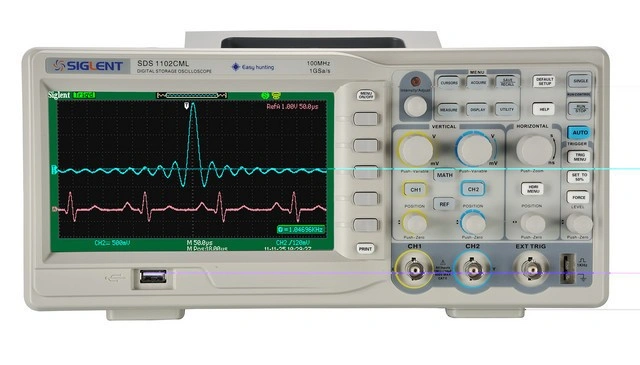

 Siglent SDS1102CML 100MHz images




Siglent SDS1102CML 100MHz

: Siglent SDS1072CNL 70MHz 2 Channel

Siglent SDS1102CML 100MHz


Features and Benefits:

● Up to 150MHz Bandwidth 1GSa/s sample rate
● 7''TFT-LCD display, 8*18 grids
● Channels: 2CH+1EXT
● 1GSa/s samplinge rate, 2Mpts memory depth
● 6 digits hardware frequency counter, real time counting display
● Support SCPI programming command control
● Interface: USB Device, USB Host, RS-232, Pass/Fail
● Unique digital filter and data recorder function
● Embedded 12 languages, online help, one key storing and one key printing


Siglent oscilloscopes include :

2 x probe's
1 x EU power cord
1 x USB cable
1 x Manual
1 x CD with software

Specifications

Model

SDS1102CML

Bandwidth

100MHz

Channels

2CH+1EXT

Real time sampling rate

1 GSa/s

Equivalent sampling rate

50GSa/s

Memory depth

2Mpts

Rise time

< 3.5ns

Input impedance

1MΏ‖17pF

Time base range

2.5ns/div-50s/div

Scan: 100ms-50s/div

Vertical sensitivity

2mV-10V/div

Vertical resolution

8bit

Trigger source

CH1, CH2, Ext, Ext/5, AC Line

Trigger types

Edge, Pulse, Video, Slope, Alternative

Math Operation

+, -, x, ÷,FFT

Digital filter

High pass, Low pass, Band pass, Band stop

Max input voltage

±400V (DC+AC Pk-Pk), CAT I, CAT II

Internal storage

2 groups of reference waveform, 20 groups of setting, 10 groups of waveform

External storage

Bitmap save, CSV save, Waveform save, Setting save

Language

English, French, German, Russian, Spanish, Simplified Chinese, traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic

Interface

USB Host, USB Device, RS-232, Pass/Fail out

Display

7 inches (178mm) colour TFT (480*234) LCD

Power

AC 100-240V, 45Hz-440Hz, 50VA Max

PC software

Can through the computer remote control the oscilloscope extraction waveform analysis data

Remark

With original source seamless connection, form signal collection, produice integration system
