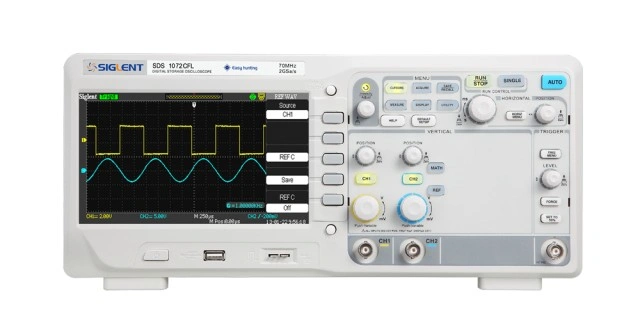

 Siglent SDS1072CFL 70MHz 2 Channel images


Pin It


Siglent SDS1072CFL 70MHz 2 Channel

SKU: Siglent SDS1072CFL 70MHz 2 Channel

Siglent SDS1072CFL 70MHz 2 Channel


Features and Benefits:

● Memory depth of SDS1000CFL is 24Kpts
● Use Colored TFT LCD, the waveform display is clearer and stable
● Screen saver function: 1 minute to 5 hours
● 2/4 channel-channel bandwidth: 70MHZ-300MHZ
● The real time sampling rate is 2GSa/s
● Trigger Modes: Edge, Pulse, Video, Slope and Alternative trigger modes
● Unique Digital Filter function and Waveform recorder function
● Pass/Fail function
●Thirty two parameters Auto measure function
● Cursor measure covers Manual mode, Track mode and Auto mode
● Channel waveform and it's FFT waveform display on split screen
● Pop-up Menu display pattern is more convenient for users using it
● Multiple Language User Interface
● Support Multilingual online help system

Siglent oscilloscopes include:

2 x probe's
1 x EU power cord
1 x USB cable
1 x Manual
1 x CD with software

Specifications

Model

SDS1072CFL

Bandwidth

70MHz

Channels

2CH+1EXT

Real time sampling rate

1GSa/s(each channel), 2GSa/s(half channel)

Equivalent sampling rate

50GSa/s

Memory depth

12K (each channel), 24k(half channel)

Rise time

< 5ns

Input impedance

1MΏ‖13pF

Time base range

5.0ns/div-50s/div

Scan: 100ms-50s/div

Vertical sensitivity

2mV - 5V/div

Vertical resolution

8bit

Trigger source

CH1, CH2, CH3, CH4, Ext, Ext/5, AC Line

Trigger types

Edge, Pulse, Video, Slope, Alternative

Math Operation

+, -, x, ÷, FFT

Digital filter

High pass, Low pass, Band pass, Band Stop

Max input voltage

±400V (DC+AC Pk-Pk), CAT I, CAT II

Internal storage

2/4 groups of reference waveform, 20 groups of settings, 20 groups of waveforms

External storage

Bitmap save, CSV save, Waveform save, Setting save

Language

English, French, German, Russian, Spanish, Simplified Chinese, traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic

Interface

Double USB Host, USB Device, LAN, Pass/Fail out

Display

7" colour TFT-LCD

Power

AC 100-240V, 45Hz-440Hz, 50VA Max

PC software

Can through the computer remote control oscilloscope, extraction waveform analysis data

Remark

With original source seamless connection, from signal collection, produce integration system
