 Siglent SDS1052DL 50MHz images

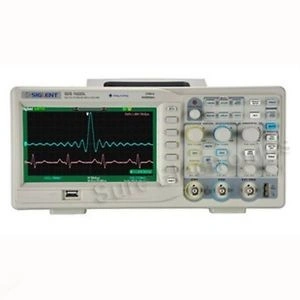

Siglent SDS1052DL 50MHz

: Siglent SDS1052DL 50MHz

SDS1052DL 50MHz


Features and Benefits:

● Up to 200MHz Bandwidth 500MSa/s sample rate
● 7''TFT-LCD display, 8*18 grids
● Channels: 2CH+1EXT
● 500MSa/s samplinge rate, 32Kpts memory depth
● 6 digits hardware frequency counter, real time counting display
● Support SCPI programming command control
● Interface: USB Device, USB Host, RS-232, Pass/Fail
● Unique digital filter and data recorder function
● Embedded 12 languages, online help, one key storing and one key printing

Siglent oscilloscopes include :

2 x probe's
1 x EU power cord
1 x USB cable
1 x Manual
1 x CD with software



Specifications

Model

SDS1052DL

Bandwidth

50MHz

Channels

2CH+1EXT

Real time sampling rate

500MSa/s

Equivalent sampling rate

50GSa/s

Memory depth

32k

Rise time

< 7ns

Input impedance

1MΏ‖17pF

Time base range

10ns/div-50s/div

Scan: 100ms-50s/div

Vertical Sensitivity

2mV-10V/div

Vertical resolution

8bit

Trigger source

CH1, CH2, Ext, Ext/5, AC Line

Trigger types

Edge, Pulse, Video, Slope, Alternatives

Math Operation

+, -, x, ÷, FFT

Digital Filter

High pass, Low pass, Band pass, Band Stop

Max Input voltage

±400V (DC+AC Pk-Pk), CAT 1, CATII

Internal storage

2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms

External storage

Bitmap save, CSV save, Waveform save, Setting save

Language

English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic

Interface

USB Host, USB Device, RS-232, Pass/Fall out

Display

7 inches (178mm) colour TFT (480*234) LCD

Power

AC 100-240V, 45Hz-440Hz, 50VA Max

PC software

Can through the computer remote control osciloscope, extraction waveform analysis data

Remark

With original source seamless connection, from signal collection, produce integration system

011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Oscilloscopes

Product code - SKU: Siglent SDS1052DL 50MHz
