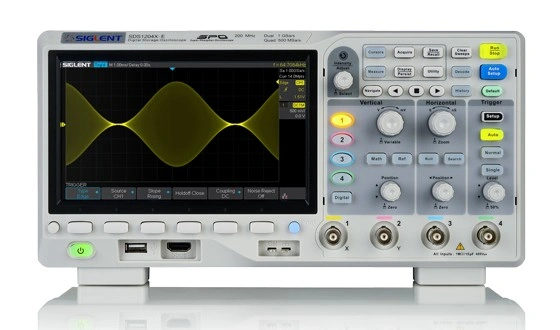

Siglent SDS1000X-E Series Super Phosphor Oscilloscopes

SKU: SDS1000X-E Series Super Phosphor Oscilloscopes

Product Description


SIGLENT’s new SDS1000X-E Super Phosphor Oscilloscopes feature two channel and four channel models. The two channel model is available with a 200 MHz analog bandwidth, a single ADC with a 1 GSa/s maximum sample rate, and a single memory module with 14 Mpts of sample memory. The four channel scope is available in 100 and 200 MHz models and incorporates two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 7 Mpts. When only a single channel per ADC is active, the maximum sample rate is 1 GSa/s and the maximum record length is 14 Mpts. For ease -of -use, the most commonly used functions can be accessed with its user- friendly front panel design.


The SDS1000X-E series employs a new generation of SPO (Super -Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 1 million point FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT’s new SDS1000X-E cannot be matched anywhere else in this price class.


The four channel series includes even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels (Option), an external USB powered 25 MHz AWG module (Option), a USB WIFI adapter (Option), and an embedded application that allows remote control via web browser.




Key Features


◆ 100 MHz, 200 MHz bandwidth models


◆ Two channel series have one 1 GSa/s ADC, four channel series have two 1 GSa/s ADCs. When all channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel per ADC is active, it has sample rate of 1 GSa/s


◆ The newest generation of SPO technology


   ◆ Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)


   ◆ Supports 256-level intensity grading and color display modes


   ◆ Record length up to 14 Mpts


   ◆  Digital trigger system


◆ Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern


◆ Serial bus triggering and decoding (Standard), supports protocols IIC, SPI, UART, RS232, CAN, LIN


◆ Video trigger, supports HDTV


◆ Low background noisewith voltage scales from 500 μV/div to 10 V/div


10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print


Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture the qualifying event.


◆ History waveform record (History) function, maximum recorded waveform length is 80,000 frames.


◆ Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions


◆ 1 Mpts FFT


◆ Math and measurement functions use all sampled data points (up to 14 Mpts)


◆ Math functions (FFT, addition, subtraction, multiplication,division, integration, differential, square root)
◆ Security Erase modePreset key can be customized for user settings or factory “defaults”


 Security Erase mode


 High Speed hardware based Pass/ Fail function


MSO, 16 digital channels (four channel series only, option)


Bode plot (four channel series only)


Search and navigate (four channel series only)


◆ USB AWG module (four channel series only, option)


◆ USB WIFI adapter (four channel series only, option)


◆ Web Browser based control (four channel series only)


◆ Large 7 inch TFT -LCD display with 800 * 480 resolution


◆ Multiple interface types: USB Host, USB Device (USB -TMC), LAN Pass / Fail, Trigger Out


◆ Supports SCPI remote control commands

◆ Supports Multi-language display and embedded online help


SDS1000X-E Series Digital Oscilloscope

SDS1104X-E 100 MHz Four Channels

SDS1204X-E 200 MHz Four Channels

SDS1202X-E 200 MHz Two Channels
