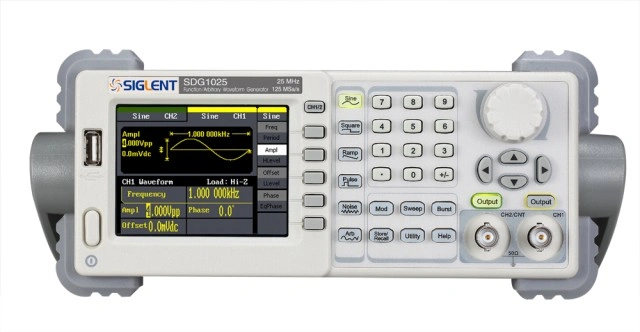

Siglent SDG1025 25MHz Function/Arbitrary Waveform Generator
SKU: Siglent SDG1025 25MHz Function/Arbitrary Waveform Generator
Siglent SDG1025 25MHz Function/Arbitrary Waveform Generator
Features and Benefits
- Apply DDS technology, double output, adjustable phase, the highest output frequency 25MHz
- 125MSa/s sample rate, 14bit vertical resolution, 16Kpts wave length
- Output 5 types of standard waveform, internally installed 48 types of waveform
- Internally installed high precision, wide frequency counter, frequency is up to 200MHz
- Abundant modulation function, sweep-frequency output pulse train output
- Standard collocation connection: USB Device, USB Host Support U Disk storage and software, upgrading GPIB port is optional
- Can connect to SDS1000 series digital oscilloscope perfectly and support remote command control
Standard Accessories
- 1x User Manual
- 1x certification
- 1x CD (including EasyWave 1.0 computer software system)
• 1x USB Cable
• 1x Quick start
Specifications
|
Model |
SDG1005 |
SDG1010 |
SDG1020 |
SDG1025 |
SDG1050 |
|
Maximum output frequency |
5MHz |
10MHz |
20Mhz |
25MHz |
50MHz |
|
Output channels |
2 |
||||
|
Sampling rate |
125 MSa/s |
||||
|
Wave Length |
16kpts |
||||
|
Frequency resolution |
1 µ Hz |
||||
|
Vertical resolution |
14 bits |
||||
|
Waveform |
Sine, Square, Ramp, Pulse, Gaussian noise, 48 types of built-in arbitrary waveforms |
||||
|
Sine wave |
1µHz ～5MHz |
1µHz～10MHz |
1µHz～20MHz |
1µHz～25MHz |
1µHz～50MHz |
|
Square wave |
1µHz～5MHz |
1µHz～5MHz |
1µHz～5MHz |
1µHz～5MHz |
1µHz～5MHz |
|
Pulse |
500µHz～5MHz |
500µHz～5MHz |
500µHz～5MHz |
500µHz～5MHz |
500µHz～5MHz |
|
Ramp |
1µHz～300KHz |
1µHz～300KHz |
1µHz～300KHz |
1µHz～300KHz |
1µHz～300KHz |
|
Gaussian white noise |
5MHz Bandwidth (-3dB) |
10MHz Bandwidth (-3dB) |
20MHz Bandwidth (-3B) |
25MHz Bandwidth (-3dB) |
50MHz Bandwidth (-3dB) |
|
Arbitrary wave |
1µHz～5MHz |
1µHz～5MHz |
1µHz～5MHz |
1µHz～5MHz |
1µHz～5MHz |
|
Modulation function |
AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst |
||||
|
Other functions |
Frequency counter: 100mHz ～ 200MHz |
||||
|
Standard configuration |
USB Host & Device |
||||
|
Optional port |
USB-GPIB adapter |
||||
|
Size |
229mm x 105mm x 281mm |
||||
