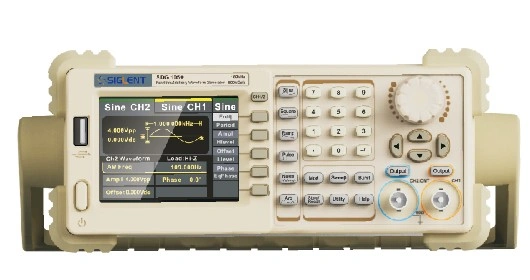

Siglent SDG1020 Function/Arbitrary Waveform Generator

SKU: Siglent SDG1020 Function/Arbitrary Waveform Generator

Siglent SDG1020 Function/Arbitrary Waveform Generator

Siglent SDG1020 Function/Arbitrary Waveform generator

  • Apply DDS technology, double output, adjustable phase, the highest output frequency is 10MHz
  • 125MSa/s sample rate, 14 bit vertical resolution, 16Kpts wave length
  • Output 5 types of standard waveform, internally installed 48 types of waveform
  • Internally installed high precision, wide frequency counter, frequency is up to 200MHz
  • Abundant modulation function, sweep-frequency output, pulse train output
  • Standard collection connection: USB Device, USB Host, support U Disk storage and software, upgrading GPIB port is optional
  • Can connect to SDS1000 series digital oscilloscope perfectly, and support remote command control



Standard Accessories

  • 1x User Manual
  • 1x CD (including EasyWave 1.0 computer software system)
  • 1 x Power Cable
  • 1x USB Cable
  • 1x Quick start



Optional Accessories:

  • BNC Cable
  • GPIB (IEEE 488.2)

Specifications

Model

SDG1005

SDG1010

SDG1020

SDG1025

SDG1050

Maximum output frequency

5MHz

10MHz

20MHz

25MHz

50MHz

Output channels

2

Sampling rate

125 MSa/s

Wave length

16 kpts

Frequency resolution

1 µHz

Vertical resolution

14 bits

Wave form

Sine, Square, ramp, pulse, Gaussian white noise, 48 types of built-in arbitrary waveforms

Sine wave

1µHz~5MHz

1µHz~10MHz

1µHz~20MHz

1µHz~25MHz

1µHz~50MHz

Square wave

1µHz~ 5MHz

1µHz~10MHz

1µHz~20MHz

1µHz~25MHz

1µHz~50MHz

Pulse

500µHz~5MHz

500µHz~5MHz

500µHz~5MHz

500µHz~5MHz

500µHz~5MHz

Ramp

1µHz ~300KHz

1µHz~300KHz

1µHz~300KHz

1µHz~300KHz

1µHz~300KHz

Gaussian white noise

5MHz

Bandwidth (-3dB)

10MHz

Bandwidth (-3dB)

20MHz Bandwidth (-3dB)

25MHz Bandwidth (-3dB)

50MHz

(Bandwidth (-3dB)

Arbitrary wave

1µHz~5MHz

1µHz~5MHz

1µHz~5MHz

1µHz~5MHz

1µHz~5MHz

Modulation function

AM, FM, PM, DSB-Am, FSK,ASK,PWM, Sweep,Burst

Other functions

Frequency counter: 100mHz ~ 200MHz

Standard configuration

USB Host & device

Optional port

USB-GPIB adapter

Size

229mm x 105mm x 281mm
