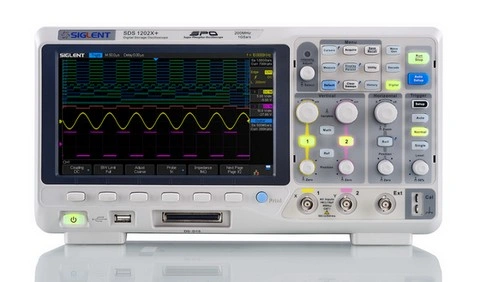

SDS1000X/X+ Series Super Phosphor Oscilloscopes

: SDS1000X/X+ Series

Product Overview

SIGLENT’s new SDS1000X/SDS1000X+ Series Super Phosphor Oscilloscopes are available in two bandwidths, 100 MHz and 200 MHz, have a sampling rate of 1 GSa/s and a standard record length of 14 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design.

The SDS1000X/SDS1000X+ series employs a new generation of SPO technology. With its excellent signal fidelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 60,000 frames/sec. It also employs not only the common 256-level intensity grading display function but also a color temperature display mode not found in other models in this class. Siglent’s new oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allow for extended waveform records to be captured, stored, and analyzed. SDS1000X+ adds an integrated 25 MHz arbitrary waveform generator (standard), option for 16 digital channels. The features and high-performance of the SDS1000X/SDS1000X+ oscilloscopes cannot be matched at any product at this price.


Key Features

◆200 MHz, 100 MHz bandwidth models

◆Real-time sampling rate up to 1GSa/s

◆New generation of SPO technology

   ◆ Waveform capture rate up to 60,000 wfm/s (normal mode), and 400,000 wfm/s(sequence mode)

   ◆ Supports 256-level intensity grading and color display modes

   ◆ Record length up to 14 Mpts

   ◆ Digital trigger system

◆Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout),Pattern

◆Serial bus triggering and decode, supports protocols IIC, SPI, UART, RS232, CAN, LIN

◆Video triggers and supports HDTV

◆Low background noise, supports 500μV / div to 10V / div voltage scales

◆10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print

◆ Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions
set by the user, with a very small dead time segment to capture the qualifying event.

◆History waveform record (History) function, the maximum recorded waveform length is 80,000 frames

◆Automatic measurement function on 37 parameters, supports Statistics, Gating measurement, Math measurement, History measurement and Ref measurement

◆Math function (FFT, addition, subtraction, multiplication, division, integration, differential, square root)

◆ High Speed hardware based Pass/ Fail function

◆16 Digital channels (MSO), Maximum waveform capture rate up to 500 MSa/s, Record length up to 14 Mpts/CH (Option for SDS1000X+ models)

◆ 25 MHz DDS arbitrary waveform generator, built-in 10 kinds of waveforms (Standard for SDS1000X+ models)

◆ Large 8 inch TFT-LCD display with 800 * 480 resolution

◆ Multiple interface types: USB Host, USB Device (USB-TMC), LAN (VXI-11), Pass / Fail, Trigger Out

◆ Supports SCPI remote control commands

◆ Supports Multi-language display and embedded online help



《SDS1000X/X+ Series Super Phosphor Oscilloscopes Datasheet》

Ordering Information

Product Name

Product Description

SDS1202X+

200 MHz, 2 CH, Built-In Waveform Generator, 16 Digital Channels (Option)

SDS1102X+

100 MHz, 2 CH, Built-In Waveform Generator, 16 Digital Channels (Option)

SDS1202X

200 MHz, 2 CH

SDS1102X

100 MHz, 2 CH

Standard Accessories
USB Cable -1
Passive Probe -2
Power Cord -1
Quick Start -1
Certification -1

Optional Accessories

SDS-1000X-DC

I2C,SPI,UART/RS232,CAN,LIN Decoder

SDS-1000X-16LA

16 Channels MSO (Software)

SPL1016

16 Digital Channels Logic Probe

ISFE

Isolated Front End

STB

STB Demo Source

HPB4010

High Voltage Probe

CP4020/CP4050/CP4070/

CP4070A/CP5030/CP5030A/ CP5150/CP5500
Current Probe

DPB4080/DPB5150/DPB5150A/

DPB5700/DPB5700A

Differential Probe
