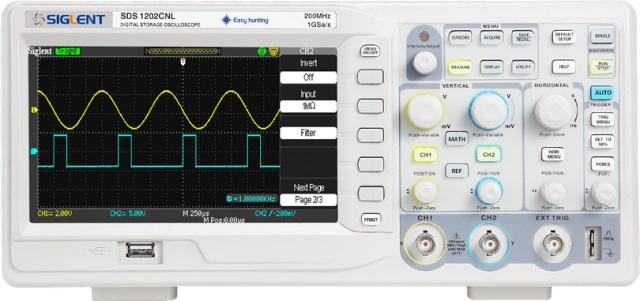

 SDS1000CNL Series Digital Storage Oscilloscopes images


Pin It


SDS1000CNL Series Digital Storage Oscilloscopes

SKU: SDS1000CNL

Product Overview

The SDS1000CNL family of oscilloscopes offer a high performance-to-price ratio and give the user good multifunction features and quality.Equipped with a 7-inch LCD display, the user is able to view a larger portion of the signal under test. A 1GSa/s sampling rate allows you to examine the instantaneous signal with confidence. The efficient front panel interface ensures ease of use and interoperability. SDS1000CML series oscilloscopes include standard functions which make it easier and faster to complete work. They can analyze signals effectively, greatly improve work efficiency, and provide for ease of use when measuring complex signals.

Key Features

◆ Slim design, compact and easy to carry

◆ 1G Sa/s real time sampling rate,50G Sa/s equivalent sampling rate

◆ Bandwidth:70MHz,100MHz,200MHz

◆ TFT-LCD 8×18 div color display

◆ 3 kinds of cursor modes,32 kinds of automation measurements

◆ Trigger types:Edge,Pulse,Video,Slope,Alternative

◆ 6 digits hardware frequency counter, real time counting display

◆ Pop-up menu, friendly design

◆ 2 groups of reference waveform, 20 groups of setting, 10 groups of waveform

◆ Independent channel control

◆ Standard interfaces: USB Device: supports remote control and PictBridge print;

    USB Host: supports USB storage; RS-232, Pass/Fail output.

Ordering Information

Product Model

SDS1202CNL+, 200MHz, 2 channel

SDS1102CNL, 100MHz, 2 channel

SDS1072CNL, 70MHz, 2 channel
Standard Accessories
Warranty Card
A USB cable
A QuickStart Guide
A product qualification certificate
CD(contains EasyScope PC software)
A power cord designed for the instrument and authorized by local country
1:1/10:1 probe(Consistent with the number of channels you bought)
Optional Accessories
Isolated channel optional accessories
SDS1000CNL series oscilloscope portable bag
