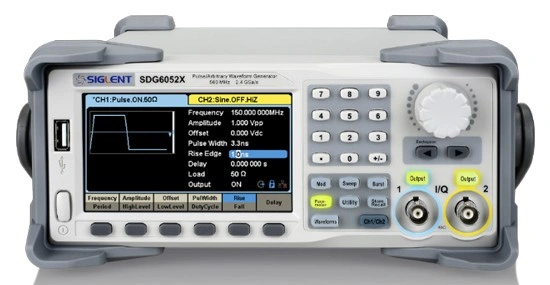

 SDG6000X Series Pulse/Arbitrary Waveform Generator images




SDG6000X Series Pulse/Arbitrary Waveform Generator

SKU: SDG6000X Series Pulse/Arbitrary Waveform Generator

Product Overview


SIGLENT SDG6000X is a series of dual-channel Pulse/ Arbitrary Waveform Generators that feature up to 500 MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6000X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Key Features

▪ Dual-Channel, 500 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
▪ High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
▪ Multi-function signal generator, meeting requirements in wide range

▪ Sweep and Burst function
▪ Harmonics function
▪ Waveform Combining function
▪ Channel Coupling, Copy and Tracking functionr
▪ 196 built-in arbitrary waveforms
▪ High precision Frequency Counter
▪ Standard interfaces include: USB Host, USB Device (USBTMC), LAN(VXI-11, Socket, Telnet). Optional Interface: GPIB
▪ 4.3” touch screen display for easier operation





Product Description


SDG6052X

500 MHz, 2-CH, 2.4 GSa/s, 16-bit

SDG6032X

350 MHz, 2-CH, 2.4 GSa/s, 16-bit

SDG6022X
200 MHz, 2-CH, 2.4 GSa/s, 16-bit

Standard Configurations:
Quick start ×1

Power cord ×1

Calibration Certificate ×1

USB cable ×1

BNC Coaxial Cable ×2

Optional Configurations
SPA1010  10W Power Amplifier
ATT-20dB  20 dB Attenuator
USB-GPIB





011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Function Generator

Product code - SKU: SDG6000X Series Pulse/Arbitrary Waveform Generator
