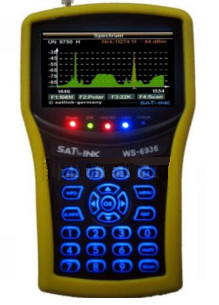

SATLINK WS-6936 DVB-S&DVB-T COMBO Meter

SKU: SATLINK WS-6936

SATLINK WS-6936 DVB-S&DVB-T COMBO Meter



Product Description

 DIGITAL SATELLITE (DVB-S) & TERRESTRIAL SIGNAL FINDER (DVB-T) Real Spectrum Analyzer

 Now with dBm, dBmV or dBµV measurements in DVB-S+T.



• 8 Menu Languages: English, German, French, Spanish, Italian, Swedish, Australian, New Zealand

• Satlink WS-6936 DVB-S & T is a professional computer measurement / signal finder for DVB-S & T (no HD)

• Satlink WS-6936 DVB-S & T has a built-in color TFT LCD display with 4.5 "/ 11 inch

• Satlink WS-6936 DVB-S & T is ideal for setting DVB-S satellite dish and DVB-T directional antennas and to validate existing DVB-S & T antenna systems

• Satlink WS-6936 DVB-S & T can be connected as a commercial Common receiver to a TV set

• Satlink WS-6936 DVB-S & T can play files from USB memory stick (JPG + MP3)



Highlights:

• Real-time Spectrum Analyzer

•Unicable SCR measurement

• DiSEqC 1.0, 1.1, 1.2

•Transponder / satellite manager

•Keyboard illumination

•AV & A-output



Unicable SCR measurement
SCR 1-8, with 12 selectable frequencies: 1210, 1284, 1400, 1420, 1516, 1632, 1680, 1748, 1864, 1980, 2040, 2096 MHz
All other SCR frequencies can be freely entered by the user. (FW Vers T + S-SP-1.6)



AV-IN & OUTPUT
Satlink WS-6936 DVB-S & T can be connected as a standard receiver to a TV set. In addition, the device has an AV input. At this, other players or AV surveillance cameras to be connected!
Multimedia Player
Representation of stored photos in JPG format and play MP3 files from your own USB stick!



PC software CTK-DB Tool
With the PC software "CTK-DB tool" you can edit the transponder / satellite list.
Edit satellite, Add & Remove
Transponder edit, add and remove



Properties:

• Frequency range: 46 - 870MHz (DVB-T) + 950 - 2150 MHz (DVB-S)

• 16:9 color TFT LCD display with 4.5 "/ 11cm diagonal

• Backlit keyboard (burn time 5,10,20 seconds or turn off)

• Flashlight function

• Fold-up foot / device like a picture frame can be placed on the table

• Screw eyelet / the device can be hung like a picture

• Built-in speaker

• Angle calculation of azimuth, elevation and LNB tilt (after entering the coordination own data)

• Display the signal strength in percent and as a bar

• Display of BER

• Indicator of S / N

• Display of signal level in dBmV, dBmV or dBm

• Unicable SCR measurement

• Real-time Spectrum Analyzer, DVB-S + T

• DiSEqC 1.0 or DiSEqC switches for multi-switch

• DiSEqC 1.1 control for DiSEqC switches / LNB 1-16

• DiSEqC 1.2 motor control

• Automatic Channel Search TV and radio

• Reception and playback of DVB-S + T TV programs

• Reception and playback of DVB-S + t radio programs

• EPG (electronic program guide)

• Format conversion 4:3 or 16:9

• AV Output: Using the adapter cable can be connected to the device to the TV and receiver are used as normal

• AV Input: for connecting external devices such as Video cameras.

• Data transfer via USB memory stick:

- Firmware Updates

- Backup your own settings

- Restore the custom settings

- Satellite and save lists on the PC to edit

- Satellite lists again transferred to the device

- For viewing photos and playing MP3 files from USB memory stick

• Built-in, easily replaceable 3000mA / h LION-Power Battery for 3-6 hours of operation

• u.v.m.



Specifications:



 Tuner DVB-T:

- Antenna connector: IEC-type, IEC 169-2 socket

- Frequency range: 76 MHz - 870 MHz

- Signal level: -40 dBm - 110 dBm

- Demodulation: CODFM

- Mode: 2K, 8K

- FEC: 1/2, 2/3, 3/4, 5/6 & 7/8

- Channel bandwidth: 6MHz / 7MHz / 8MHz



Tuner DVB-S:

- Antenna Connection: F connector

- Frequency range: 950 MHz - 2150 MHz

- Signal level: -65 dBm ~ -25 dBm

- LNB Power: 13/18 V, 400 mA max

- Mode: 2K, 8K

- LNB Control: 22KHz

- DiSEqC Ver. 1.0, 1.2



MPEG Transport Stream A/V Decoding:

- Transport Stream: MPEG-2 ISO / IEC 13818

- Profile Level: MPEG2 MP @ ML

- Input Rate: 15Mbit / s Max

- Video resolution: 720 x 576 (PAL), 720 x 480 (NTSC)

- Audio Decoding: MPEG / MusiCam LayerI & II



Demodulator:

- Front End: QPSK

- Symbol rate: 2 Mbps ~ 45 Mbps

- SCPC and MCPC: Yes

- Spectrum Analyzer: No



Memory:

- SDRAM:4 *16 MB

- FLASH:8 MB



Serial data interface:

- Connection Type: USB



Power supply:

- Li-oN battery 3000 mA / h

- Voltage: 8.4 volts

- AC adapter / charger: 90 - 240 V / AC - 125 V / 1 A DC



Dimensions:

- H x W x D 21 x 12 x 4.5 cm

- Weight: 0.5 Kg



Delivery:

- WS-6936

- DVB-T Magnetic

- Rubber Protective Cover

- large nylon carry bag with shoulder strap

- 220V charging adapter

- 12V Car Charger

- A / V adapter cable 3.5 plug to 3x RCA jack

- Manual in English
