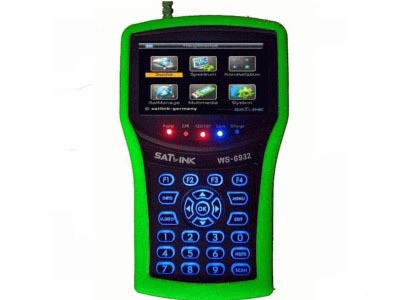

 Satlink WS-6932 DVB-S2 MPEG-4 Meter With Spectrum Analyzer images


Satlink WS-6932 DVB-S2 MPEG-4 Meter With Spectrum Analyzer

: Satlink WS-6932 HD DVB-S 1+2 Spectrum Unicable

Satlink WS-6932 HD DVB-S 1+2 Spectrum Unicable

Digital Satellite Meter & Real Spectrum Analyzer & Unicable (DVB-S+S2 / 8PSK / HD MPEG4)

Product Description

 HD satellite finder meter Satlink WS-6932, it has Constellation analyzer and Spectrum analyzer and also support the MPEG-4. You can use it to receive DVB-S and DVB-S2 signal, Watch HD programing. It's very convenient for the installer to catch and alignment the antenna to the best position. It uses microprocessor controller and has the reliable and stable performance. When you turn on it,the channel picture, signal strength and signal quality will be showed on 4.3 inch Large LCD screen. The large menu also can display EL/AZ, CBER/VBER, S/N. It can detect very weak signal and provide antenna power(OFF/13V/18V)and also has the auto–protection for LNB short–circuit. In one word, it is your wise choose to use this HD satellite finder meter.


• The Satlink WS-6932 HD is the second measurement of Satlink computer with HD picture.

• The Satlink WS-6932 HD is a handy digital satellite meter for quick and easy alignment of satellite antennas. A satellite is found, the Satlink WS-6932 HD from both an optical and an acoustic signal.

• The reception quality is shown as a numeric measurement value and as a bar graph (bar graph / thermometer scale).

• In addition, the image quality of the high-resolution 4.3 "TFT LCD screen must be checked. Transponder frequency, symbol rate, polarity and other settings can be modified by the user.

• As a control, the transponder can be searched. Leaving then the menu will display the found TV channels.



• Spectrum Analyzer

• Constellation diagram measurement

• Unicable SCR measurement

• DiSEqC 1.0, 1.1, 1.2

• Transponder / satellite manager

•  Keyboard illumination

AV & A-output



Unicable SCR measurement

- SCR 1-8, with 12 selectable frequencies: 1210, 1284, 1400, 1420, 1516, 1632, 1680, 1748, 1864, 1980, 2040, 2096 MHz


- The Satlink WS-6932HD can be connected as a standard receiver to a TV set. In addition, the device has an AV input. At this, other players or AV surveillance cameras to be connected!

Multimedia Player

- Representation of stored photos in JPG format and play MP3 files from your own USB stick!



• Frequency range: 950 - 2150 MHz (DVB-S)

• 16:9 color TFT LCD display with 4.5 "/ 11cm diagonal

• Backlit keyboard (burn time 5,10,20 seconds or turn off)

• Flashlight function

• Built-in speaker

• Angle calculation of azimuth, elevation and LNB tilt (after entering the coordination own data)

• Spectrum Analyzer


• Constellation diagram

• Display the signal strength in percent and as a bar

• Display of BER

• Display of C / N

• Display of signal level in dBmV

• Unicable SCR measurement

• DiSEqC 1.0 or DiSEqC switches for multi-switch

• DiSEqC 1.1 DiSEqC switches for control / 1-8 LNB

• DiSEqC 1.2 motor control

• Automatic Channel Search TV and radio

• Reception and playback of DVB-S + S2 TV programs

• Reception and playback of DVB-S + S2 radio programs

• EPG (electronic program guide)

• Format conversion 4:3 or 16:9

• AV Output: Using the adapter cable can be connected to the device to the TV and receiver are used as normal

• AV Input: for connecting external devices such as Video cameras.

• Data transfer via USB memory stick:

- Firmware Updates

- Backup your own settings

- Restore the custom settings

- Satellite and save lists on the PC to edit

- Satellite lists again transferred to the device

- For viewing photos and playing MP3 files from USB memory stick

• Built-in, easily replaceable 3000mA / h LION-Power Battery for 3-6 hours of operation

• u.v.m.



LNB /Tuner input:

- Antenna Connection: F connector

- Frequency range: 950 MHz - 2150 MHz

- Signal level: -65 dBm ~ -25 dBm

- LNB Power: 13/18 V, 350 mA max

- Mode: 2K, 8K

- LNB Control: 22KHz

- DiSEqC Ver. 1.0, 1.1, 1.2 + USALS


- Front End: QPSK (DVB-S), 8PSK, 16APSK, 32APSK (DVB-S2)

- Symbol rate: 2 Mbps ~ 45 Mbps

- SCPC and MCPC: Yes

- Spectrum Analyzer: Yes


- Processor: 32 bit processor (133MHz)

- SDRAM: 16MB (64MHz)


- EEPROM: 16 * 16 MB (DDR1)

Video Decoder:

- MPEG 2: Main @ Main Level Proflie

- Data rate: up to 15 Mbits / s

- Video resolution: 720 x 576 (PAL), 720 x 480 (NTSC)

- Video format: PAL / NTSC / SECAM

MPEG Audio:

- MPEG 1 layer 1 & 2

- Type: Mono

- Sampling: 32, 44.1 and 48 KHz

Serial data interface:

- Connection Type: USB

Power supply:

- Li-oN Battery: 3000mA / h

- Voltage: 8.4 volts

- AC adapter / charger: 90 - 240 V / AC - 12 V / 1 A DC


- Size: 9.5 x 15.5 x 4.5 cm

- Weight: 0.5 Kg
