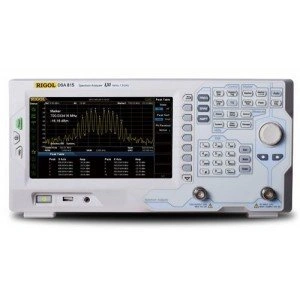

Rigol Spectrum Analyzer DSA815-TG 1.5 GHZ INCL. TRACKING GENERATOR

SKU: Rigol DSA815-TG

Product Description:

DSA815-TG  1.5 GHz Spectrum Anaylzer incl. Tracking generator(RIGOL)



DSA800  series is one of RIGOL's compact size, light weighteconomic spectrum analyzers, the digital IF technology
guarantees its reliability and performance to meet the most demanding RF applications.



  • 9 kHz to 1.5 GHz Frequency Range
  • Typical -135 dBm Displayed Average Noise Level (DANL)
  • -80 dBc/Hz @10 kHz offset Phase Noiseppm high frequency stability, -115dBc/Hz low phase noise
  • Total Amplitude Uncertainty <1.5 dB
  • 100 Hz Minimum Resolution Bandwidth (RBW)
  • EMI Filter & Quasi-Peak Detector Kit (optional)
  • VSWR Measurement Kit (optional)
  • Standard with Preamplifier and AM/FM Demodulation Function
  • Plenty of measurement functions (optional)
  • 1.5 GHz Tracking Generator (optional)
  • 8 inch (800×480 pixels) high-definition display with clear, vivid, and easy to use graphical interface
  • Complete connectivity with standard interfaces such as LAN, USB Host, USB Device and GPIB (optional)
  • Compact size,light weight (9.4 lbs)



Specifications:

Spectrum Analyzer

Spectrum Analyzer Rigol DSA815

Display

20.3 cm (8") TFT-Color-LCD with 65536 colors

Resolution

800 × 480 Pixel

Interfaces

• USB-Host (for USB stick i.e. to save/load waveforms)

• USB for a PC connection

• LAN for network connection

• GPIB (IEE-488, General Purpose Interface Bus)
The GPIB function is only available with the use of the optional available USB GPIB module

• VGA interface to connect an external display

Dimensions

399 mm × 223 mm × 159 mm
(15.71" × 8.78" × 6.26")

Weight

6.2 kg (13.67 lbs)
7.5 kg (16.54 lbs) with connected battery. The battery is not included.

Supported operation systems

Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)



Spectrum Analyzer

Spectrum Analyzer Rigol DSA815

Display

20.3 cm (8") TFT-Color-LCD with 65536 colors

Resolution

800 × 480 Pixel

Interfaces

• USB-Host (for USB stick i.e. to save/load waveforms)

• USB for a PC connection

• LAN for network connection

• GPIB (IEE-488, General Purpose Interface Bus)
The GPIB function is only available with the use of the optional available USB GPIB module

• VGA interface to connect an external display

Dimensions

399 mm × 223 mm × 159 mm
(15.71" × 8.78" × 6.26")

Weight

6.2 kg (13.67 lbs)
7.5 kg (16.54 lbs) with connected battery. The battery is not included.

Supported operation systems

Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)

Function

Spectrum Analyzer Rigol DSA815

Channels

1

Frequency Range

9 kHz to 1.5 GHz

Frequency Resolution

1 Hz

Internal Frequency Reference

10 MHz

Span

0 Hz (zero Span)
100 Hz to 1.5 GHz

DANL
(Displayed Average Noise level)

100 kHz to 1 MHz



10 MHz to 2 GHz

< -90dBm
typical: -110dBm

< -110dBm-6x(f/1GHz)dB
typical: -115dBm

DANL (with Preamplifier)
(Displayed Average Noise level)

100 kHz to 1 MHz



10 MHz to 1,5 GHz

< -110dBm
typical: -130dBm

< -130dBm-6x(f/1GHz)dB
typical: -135dBm

Amplitude Range

DANL to +20dBm

Max. Input Voltage

50 V

Sweeptime Range

100 Hz≤Span≤1.5 GHz
0 Hz (zero Span)

10 ms to 2000 s
20 µs to 2000 s

Sweepmodes

Normal or Single

Resolution Filter

100 Hz to 1 MHz (in 1-3-10 sequence)

Video Filter

1 Hz to 3 MHz (in 1-3-10 sequence)

Input Impedance

50 Ω nominal
