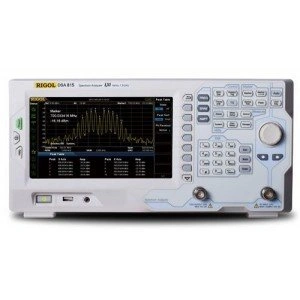

Rigol Spectrum Analyzer DSA815 1.5 GHZ

SKU: Rigol DSA815

Product Description:

The Rigol DSA815 is a compact and light Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.

The very large display (20.3 cm / 8") of the Rigol DSA815 Spectrum Analyzer with a resolution of 800x480pixels provides a very good overview over all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, instead of the manual process necessary with a traditional analyzer.

The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.


  • •9 kHz to 1.5 GHz Frequency Range
  • •Typical -135 dBm Displayed Average Noise Level (DANL)
  • •-80 dBc/Hz @10 kHz offset Phase Noiseppm high frequency stability, -115dBc/Hz low phase noise
  • •Total Amplitude Uncertainty <1.5 dB
  • •100 Hz Minimum Resolution Bandwidth (RBW)
  • •EMI Filter & Quasi-Peak Detector Kit (optional)
  • •VSWR Measurement Kit (optional)
  • •Standard with Preamplifier and AM/FM Demodulation Function
  • •Plenty of measurement functions (optional)
  • •1.5 GHz Tracking Generator (optional)
  • •8 inch (800×480 pixels) high-definition display with clear, vivid, and easy to use graphical interface
  • •Complete connectivity with standard interfaces such as LAN, USB Host, USB Device and GPIB (optional)
  • •Compact size,light weight (9.4 lbs)



Spectrum Analyzer

Spectrum Analyzer Rigol DSA815


20.3 cm (8") TFT-Color-LCD with 65536 colors


800 × 480 Pixel


• USB-Host (for USB stick i.e. to save/load waveforms)

• USB for a PC connection

• LAN for network connection

• GPIB (IEE-488, General Purpose Interface Bus)
The GPIB function is only available with the use of the optional available USB GPIB module

• VGA interface to connect an external display


399 mm × 223 mm × 159 mm
(15.71" × 8.78" × 6.26")


6.2 kg (13.67 lbs)
7.5 kg (16.54 lbs) with connected battery. The battery is not included.

Supported operation systems

Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)



Spectrum Analyzer Rigol DSA815



Frequency Range

9 kHz to 1.5 GHz

Frequency Resolution

1 Hz

Internal Frequency Reference

10 MHz


0 Hz (zero Span)
100 Hz to 1.5 GHz

(Displayed Average Noise level)

100 kHz to 1 MHz


10 MHz to 2 GHz

< -90dBm
typical: -110dBm

< -110dBm-6x(f/1GHz)dB
typical: -115dBm

DANL (with Preamplifier)
(Displayed Average Noise level)

100 kHz to 1 MHz


10 MHz to 1,5 GHz

< -110dBm
typical: -130dBm

< -130dBm-6x(f/1GHz)dB
typical: -135dBm

Amplitude Range

DANL to +20dBm

Max. Input Voltage

50 V

Sweeptime Range

100 Hz≤Span≤1.5 GHz
0 Hz (zero Span)

10 ms to 2000 s
20 µs to 2000 s


Normal or Single

Resolution Filter

100 Hz to 1 MHz (in 1-3-10 sequence)

Video Filter

1 Hz to 3 MHz (in 1-3-10 sequence)

Input Impedance

50 Ω nominal
