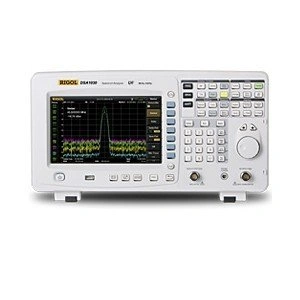

 Rigol Spectrum Analyzer DSA1030+TG3 INCL. TRACKING GENERATOR images


Pin It


Rigol Spectrum Analyzer DSA1030+TG3 INCL. TRACKING GENERATOR

SKU: Rigol DSA1030+TG

Product Description:

The Rigol DSA1030A is a compact and light Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.

The very large display (21.6 cm / 8.5") of the Rigol DSA1030A Spectrum Analyzer with a resolution of 800x480pixels provides a very good overview over all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, instead of the manual process necessary with a traditional analyzer.

The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.



Specifications:

Spectrum Analyzer

Spectrum Analyzer Rigol DSA1030A

Display

21.6 cm (8.5") TFT-Color-LCD with 65536 colors

Resolution

800 × 480 Pixel

Interfaces

• USB-Host (for USB stick i.e. to save/load waveforms)

• USB for a PC connection

• LAN for network connection

• GPIB (IEE-488, General Purpose Interface Bus)
The GPIB function is only available with the use of the optional available USB GPIB module

• VGA interface to connect an external display

Dimensions

399 mm × 223 mm × 159 mm
(15.71" × 8.78" × 6.26")

Weight

6.2 kg (13.67 lbs)
7.5 kg (16.54 lbs) with connected battery.

Supported operation systems

Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)



Function

Spectrum Analyzer Rigol DSA1030A

Channels

1

Frequency Range

9 kHz to 3 GHz

Frequency Resolution

1 Hz

Internal Frequency Reference

10 MHz

Span

0 Hz (zero Span)
100 Hz to 3 GHz

DANL (without preamplifier)
(Displayed Average Noise level)

100 kHz to 10 MHz



10 MHz to 2,5 GHz



2,5 GHz to 3 GHz

< -85dBm-3x(f/1 MHz)dB
typical: -125 dBm

< -127dBm-3x(f/1GHz)dB
typical -130 dBm

< -115dBm

DANL (with preamplifier)
(Displayed Average Noise level)

100 kHz to 1 MHz
1 MHz to 10 MHz



10 MHz to 2,5 GHz



2,5 GHz to 3 GHz

< -103dBm
< -103dBm-3x(f/1MHz)dB
typical: -143 dBm

< -145dBm-3x(f/1GHz)dB
typical -148 dBm

< -133dBm

Amplitude Range

DANL to +30dBm

Max. Input Voltage

50 V

Sweeptime Range

100 Hz ≤ Span ≤ 3 GHz
0 Hz (zero Span)

10 ms to 3000 s
20 µs to 3000 s

Sweepmodes

Normal or Single

Resolution Filter

10 Hz to 1 MHz (in 1-3-10 sequence)

Video Filter

1 Hz to 3 MHz (in 1-3-10 sequence)

Input Impedance

50 Ω nominal
