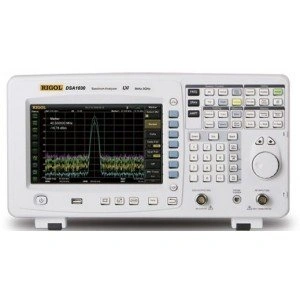

Rigol Spectrum Analyzer DSA1030-PA 3GHZ WITH PREAMPLIFIER

SKU: Rigol DSA1030-PA

Product Description:

DSA1030-PA 3GHz Spectrum Analyzer with PreAmplifier  (RIGOL)

DSA1000 series products are high-performance and portable spectrum analyzers with compact design, small size and light weight. What’s more, with their low price, DSA1000 series spectrum analyzers are an ideal option to solve your budget problem.

  • All Digital IF design

  • 9 kHz to 2 GHz or 3 GHz Frequency Range

  • Up to -138 dBm Displayed Average Noise Level

  • -80 dBc/Hz @10 kHz offset Phase Noise

  • Total Amplitude Uncertainty <1.5 dB

  • 100 Hz Minimum Resolution Bandwidth (RBW)

  • 3 GHz Tracking Generator (DSA1030 optional)

  • Built-in lithium battery that can provide 3 hours continuous operation (optional)

  • Advanced measurement functions (DSA1030 optional) and automatic settings provide ultimate flexibility

  • 8.5 inch widescreen display with clear, vivid, and easy to use graphical interface

  • Various interface options such as LANUSB Host, USB Device, VGA or GPIB (optional)

  • Compact design with a weight of only 13.7 lbs



Spectrum Analyzer

Spectrum Analyzer Rigol DSA1030


21.6 cm (8.5") TFT-Color-LCD with 65536 colors


800 × 480 Pixel


• USB-Host (for USB stick i.e. to save/load waveforms)

• USB for a PC connection

• LAN for network connection

• GPIB (IEE-488, General Purpose Interface Bus)
The GPIB function is only available with the use of the optional available USB GPIB module

• VGA interface to connect an external display


399 mm × 223 mm × 159 mm
(15.71" × 8.78" × 6.26")


6.2 kg (13.67 lbs)
7.5 kg (16.54 lbs) with connected battery. The battery is not included.

Supported operation systems

Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)



Spectrum Analyzer Rigol DSA1030



Frequency Range

9 kHz to 3 GHz

Frequency Resolution

1 Hz

Internal Frequency Reference

10 MHz


0 Hz (zero Span)
100 Hz to 3 GHz

DANL (without preamplifier)
(Displayed Average Noise level)

100 kHz to 10 MHz


10 MHz to 2,5 GHz


2,5 GHz to 3 GHz

< -75dBm-3x(f/1 MHz)dB
typical: -115 dBm

< -117dBm-3x(f/1GHz)dB
typical -120 dBm

< -105dBm

DANL (with preamplifier)
(Displayed Average Noise level)

100 kHz to 1 MHz
1 MHz to 10 MHz


10 MHz to 2,5 GHz


2,5 GHz to 3 GHz

< -93dBm
< -93dBm-3x(f/1 MHz)dB
typical: -133 dBm

< -135dBm-3x(f/1GHz)dB
typical -138 dBm

< -123dBm

Amplitude Range

DANL to +30 dBm

Max. Input Voltage

50 V

Sweeptime Range

100 Hz ≤ Span ≤ 3 GHz
0 Hz (zero Span)

10 ms to 3000 s
20 µs to 3000 s


Normal or Single

Resolution Filter

10 Hz to 1 MHz (in 1-3-10 sequence)

Video Filter

1 Hz to 3 MHz (in 1-3-10 sequence)

Input Impedance

50 Ω nominal
