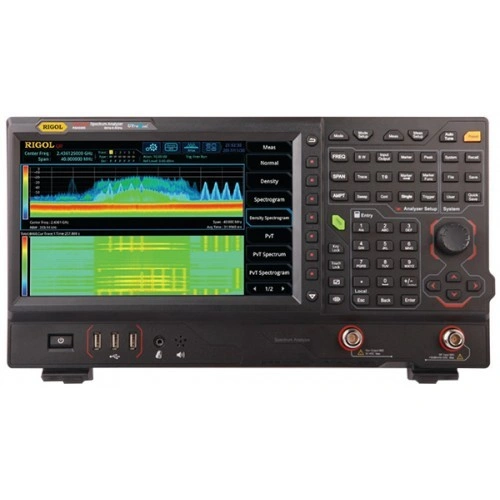

 Rigol RSA5000 Series 9 kHz to 3.2 or 6.5 GHz Spectrum Analyzers images




Rigol RSA5000 Series 9 kHz to 3.2 or 6.5 GHz Spectrum Analyzers

: RSA5000

Product Description


Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference.  Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems.  The RSA5000 combines industry leading realtime performance (7.45µs 100% POI), rich data displays, and advanced triggering options allowing the user to quickly capture, identify and analyze these complex events.


Specifications


• 9 kHz to 3.2 or 6.5 GHz Frequency Range
• 10.1” Capacitive touchscreen display
• Displayed Average Noise Level as low as -165 dBm with opt. PreAmplifier
• Real-Time Analysis Bandwidth of 25 MHz standard (40 MHz option)
• 7 Real-Time visualization modes
• 100 % POI as low as 7. 45 µseconds
• 1 Hz Minimum Resolution Bandwidth (RBW)
• 1 ms full span sweep speed
• EMI bandwidths standard (200 Hz, 9 kHz, 120 kHz, 1 MHz)

Models

Model Frequency DANL Phase Noise RBW
RSA5032 3.2 GHz -165 dBm -108 dBc/Hz 1 Hz
RSA5032-TG 3.2 GHz -165 dBm -108 dBc/Hz 1 Hz
RSA5065 6.5 GHz -165 dBm -108 dBc/Hz 1 Hz
RSA5065-TG 6.5 GHz -165 dBm -108 dBc/Hz 1 Hz



Rigol RSA5000 Datasheet & Specs
