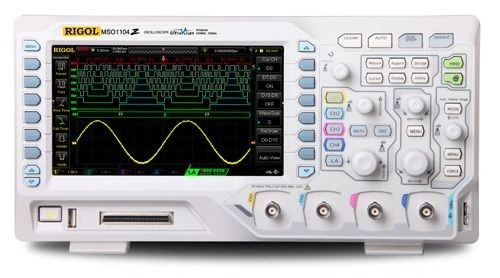

Rigol MSO1104Z 100 MHz Mixed Signal Oscilloscope

SKU: MSO1104Z 100 MHz Mixed Signal Oscilloscope

Product Description

The MSO1000Z Series is the new economic level Digital Oscilloscope from Rigol to meet the customer's applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The MSO1000Z 4 channel oscilloscopes come in 70 or 100 MHz versions with a 7 inch display and Rigol's UltraVision technology and a 16 bit digital input port for mixed signal applications as well as a host of options. Add the optional analysis, decoding, deep memory, and integrated 2 channel waveform generator for a powerful 4 channel scope at an exceptional price.

Features

  • 100MHz Bandwidth, 4 analog channels
  • 16 digital channels for Mixed Signal analysis
  • 1G Sa/s Real-time Sample Rate
  • 12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
  • Innovative "UltraVision" technology
  • Up to 30,000wfms/s Waveform Capture Rate
  • 7 Inch WVGA (800x480), multiple intensity levels waveform display.

Specifications

Model

MSO1104Z

Bandwidth

100 MHz

Analog Channels

4

Sample Rate

1GSa/s (Single-channel), 500MSa/s(Dual-channel), 250MSa/s(Fulll-channel)

Max Memory Depth

12Mpts(standard) ,24Mpts(option)

Max. Waveform Capture rate

Up to 30,000 wfms/s

Real Time waveform Record and Replay

Up to 60, 000 Frames(Opt.)

Std. Probes

RP2200 150MHz BW Passive Probe:4 sets

Built in 2 Ch Source

No

16 Digital Channels for

Mixed Signal Analysis

Yes

011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Oscilloscopes

Brand: Rigol

Bandwidth: 100MHz

Channels: 4 Channel

Product code (SKU): MSO1104Z 100 MHz Mixed Signal Oscilloscope
