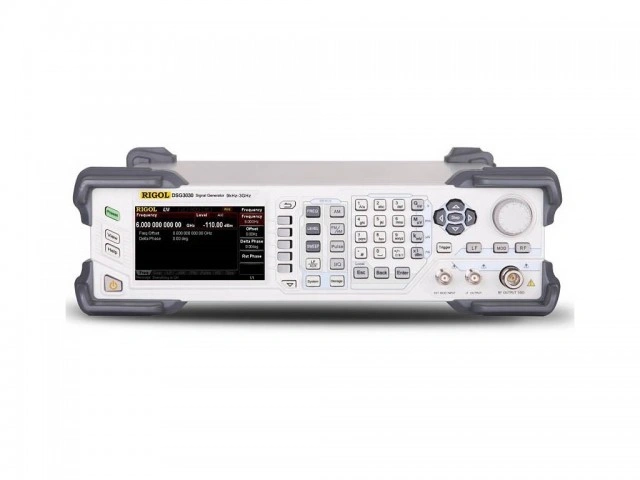

Rigol DSG3030 Signal Generator 3GHz RF

SKU: Rigol DSG3030

Product Overview

The DSG3000 Series offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output. The DSG3060 has a maximum frequency of 6 GHz. Featuring a high signal purity with phase noise measuring <-110dBc/Hz@20kHz (typical) and a wide output range of -130dBm to +25dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of <0.5dB (typical).

Features

  • Maximum frequency 3GHz
  • Amplitude range -130dBm to 13dBm
  • Amplitude accuracy <0.5dB typical
  • Phase noise <-110dBc/Hz @ 20kHz typical
  • 0.5ppm internal reference (5ppb optional)
  • Supports internal and external modulation signal sources
  • Supported analogue modulation - AM, FM, PM
  • Pulse modulation - On/off ratio up to 80dB (Pulse train generator optional)
  • Controls the RX1000 RF receiver demonstration kit - Making a versatile system for education purposes
  • 2U high (rack mount kit optional)
  • Connectivity... USB, LAN(LXI), GPIB interfaces - SCPI command set
  • Supplied with... USB cable, UK & European mains leads, quick guide, CD (user guide & programming guide)
  • Options include... Pulse train generator, high stability OCXO reference, power meter controller, rack mount kit, RX1000 RF demo kit, RCL standard calibration, RCL UKAS calibration

011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Signal Generators

Product code (SKU): Rigol DSG3030
