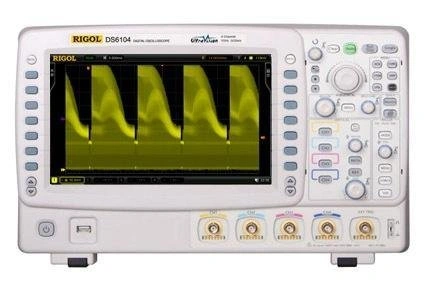

Rigol DS6104 1GHz 4 Channel 5GSa/s Digital Oscilloscope

SKU: Rigol DS6104

Rigol DS6104 1GHz 4 Channel 5GSa/s Digital Oscilloscope

Quick Overview

1GHz bandwidth, 4 Channel, 5GSa/s Digital Oscilloscope.

Product Description

The Rigol DS6104 is a very high quality four channel digital storage oscilloscope. It offers up to 5 GSa/s real-time sample rate and up to 1 GHz bandwidth.

These high performances ensure not only to capture real-time instantaneous signal, but also to observe details of repeated signal. DS6104 have up to 180.000 wfms/s refresh rate, which enable users to capture instantaneous signal and abnormal signal more quickly, to enhance waveform capturing ability, and to expedite circuit debug course. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.

Other advantages: 10.1" color LCD, bright and vivid waveform display; versatile trigger modes: i.e. slope, alternative, rise&fall edge, enable users to stabilize signal more easily. In economical oscilloscope field, DS6104 have no doubt the highest performances, the most functions thus should be engineers’ best choice.

• Up to 1GHz BW with 5GSa/s sample rate

• Standard 140Mpts deep Memory

• Up to 120,000 Waveforms per second Acquisition rate

• Up to 180,000 frams for waveform record and replay

• Deeper menory, higher wavefirm acquisition rate

• Up to 256 levels intensity grading

• Real time waveform record and replay

• Customized real time hardware filter (LPF, HPF,BPF,BRF)

• A variety of Trigger functiona and Automatic measurements with statistics

• Serial bus trigger and decode such as I2C, SPI, RS232, CAN...

• Advanced Math functions

• 10.1 inch WVGA ( 800 x 480 ) LED backlight

Special Features:

Innovative wider display

It is possible to observe up to 14 divisions on the innovative extra wide 10.1" display with a resolution of 800x480 pixels. Using the "Waveform Finder" it is easy to find a specific part of the recorded waveform. The huge memory can store up to 140.000.000 points.

Very high capture rate

Due to the very high waveform capture rate of the DS6000 series oscilloscopes it is possible to capture up to 180.000 waveforms per second.

Hardware Signal Filter

The device has several hardware filters to remove noise from the signal. Selectable filters are low pass, high pass, band pass and a band reject filter.

The signal with significant noise.
The hardware filters are a lot faster than the regular data post processing filters (DSP - Digital Signal Processing).

The cleaner waveform with hardware filtering.


Advanced Math

The DS6000 series oscilloscopes comes with a modern and advanced math system which allows to solve complicated signal calculations quite simply using user defined formulas.

Auto measurements with statistics

The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).

Serial Bus Decoding

Serial data packages of different serial bus systems can be decoded. Supported protocols are: Parallel (standard), RS232/UART (option), I²C (option), SPI (option) and CAN (option).

The optional decoding modules can be bought separately, see accessories tab on this site.

Masked Pass/Fail-Tests

Pass/fail testing can be used for troubleshooting in various environments like communication networks.
Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm



General Data

Digital Oscilloscope Rigol DS6104


10,1" WVGA-Color-LCD


800 × 480 Pixel


• 2x USB-host for i.e. USB sticks

• USB-Device for a PC connection or USB Pict-Bridge printerinterface

• LAN for network connectivity (LXI compilant)

• GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module

• Trigger- and Calibrationoutput

• 10 MHz reference clock In-/Out

• VGA interface to connect to an external monitor or projector


39.5 cm × 25.5 cm × 12.5 cm
15.55" × 10.04" × 4.92"


4.67 kg
10.3 lbs

Supported operation systems

Windows XP (32Bit + 64Bit)
Windows Vista (32Bit + 64Bit)
Windows 7 (32Bit + 64Bit)


Oscilloscope Functions

Digital Oscilloscope Rigol DS6104



Real-time sample rate

5 GSa/s realtime


1 GHz

Sampling Modus

Normal, average, peak detect


userdefined, FFT (Fast Fourier Transform)

FFT algorithm

Rectangle, Hanning, Hamming, Blackman

Signal Bus Decoding

Parallel, RS232/UART, I²C, SPI



Digital Oscilloscope Rigol DS6104


DC/AC coupling, up to 300 Vrms CAT I

Real-time sample rate

up to 5 GSa/s realtime

Time base

500 ps/div to 50 s/div


140 Mpts (1 Channel)


Hardware LPF, HPF, BPF and BRF



Digital Oscilloscope Rigol DS6104

Analog digital converter (A/D)

With the resolution of 8 bits, make sampling on both channels synchronously.

Sensitivity range (V/div)

2 mV/div to 5 V/div

Offset range

2 mV/div to 5 V/div ± 40 V



Digital Oscilloscope Rigol DS6104


Channel, Ext, EXT/5

Signal system and line/field frequency (Video triggering mode)



Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, SPI, CAN, USB



Digital Oscilloscope Rigol DS6104

Cursor measurement

Manual, Track and Auto Measure modes

Auto measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2(fall)


Standard Accessories

RP5600 10:1 Divider passive probe

600MHz Bandwidth
10:1 passive probe
Shipped with probe positioner and its accessories
Identified by DS6000 automatically
