 Rigol DS4054 500MHz 4 Channel 4GSa/s Digital Oscilloscope images


Pin It

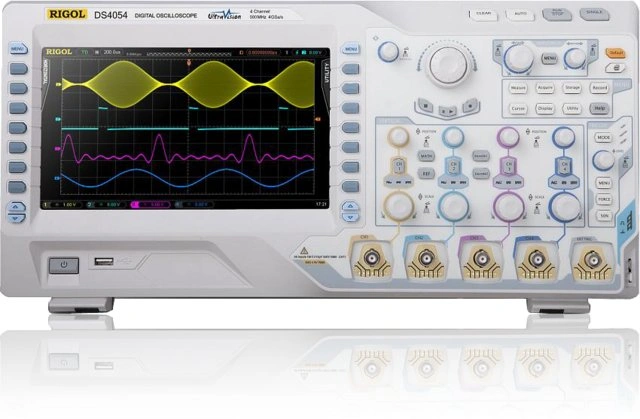

Rigol DS4054 500MHz 4 Channel 4GSa/s Digital Oscilloscope

SKU: Rigol DS4054





Rigol DS4054 500MHz 4 Channel 4GSa/s Digital Oscilloscope

Quick Overview

The DS4000 series Digital oscilloscope is a versatile, high performance oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s and up to 4 analog channels, the DS4000 is ideal for a wide variety of markets including communications, defense, aerospace, industrial.

Product Description

The Rigol DS4054 is a very high quality four channel digital storage oscilloscope. It offers up to 4 GSa/s real-time sample rate and up to 500 MHz bandwidth.

These high performances ensure not only to capture real-time instantaneous signal, but also to observe details of repeated signal. DS4054 have up to 110.000 wfms/s refresh rate, which enable users to capture instantaneous signal and abnormal signal more quickly, to enhance waveform capturing ability, and to expedite circuit debug course. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.

Other advantages: 9" color LCD, bright and vivid waveform display; versatile trigger modes: i.e. slope, alternative, rise&fall edge, enable users to stabilize signal more easily. In economical oscilloscope field, DS4054 have no doubt the highest performances, the most functions thus should be engineers’ best choice.



• Max. Sample Rate 4G Sa/s

• Standard Memory Depth 140Mpts

• 2 or 4 channels(DS40X2,DS40X4)

• Waveform capture rate up to 110,000 wfs/s

• Innovative "UltraVision" technology

• Hardware based real time waveform record and analysis

• function(Standard)

• A variety of trigger and serial bus decording functions

• 9 inch WVGA 256 level grading display

• Lower noise floor, the Min. vertical sensitivity is 1mV/div

Special Features:

Innovative wider display

It is possible to observe up to 14 divisions on the innovative extra wide 9" display with a resolution of 800x480 pixels. Using the "Waveform Finder" it is easy to find a specific part of the recorded waveform.

Ultra Vision

Due to the very high capture rate and the huge memory it is possible to capture up to 110.000 waveforms per second. It is possible to store up to 140.000.000 single measurement points. With Ultra Vision you can zoom into a selected part of the captured waveforms to get more details.

Advanced Math

The DS4000 series oscilloscopes comes with a modern and advanced math system which allows to solve complicated signal calculations quite simply using user defined formulas.

Auto measurements with statistics

The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).

Serial Bus Decoding

Serial data packages of different serial bus systems can be decoded.
supported protocols are: Parallel (standard), RS232/UART (option), I²C (option), CAN (option) and FlexRay (option)
The optional decoding modules can be bought separately, see accessories tab on this site.

Masked Pass/Fail-Tests

Pass/fail testing can be used for troubleshooting in various environments like communication networks.
Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm



Specifications:

General Data

Digital Oscilloscope Rigol DS4054

Display

9" WVGA-Color-LCD

Resolution

800 × 480 Pixel

Interface

• 2x USB-host for i.e. USB sticks

• USB-Device for a PC connection or USB Pict-Bridge printerinterface

• LAN for network connectivity (LXI compilant)

• GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module

• Trigger- and Calibrationoutput

• 10 MHz reference clock In-/Out

• VGA interface to connect to an external monitor or projector



Size (W × H × D)

44 cm × 21.8 cm × 13 cm
17.32" × 8.58" × 5.12"

Weight

4.8 kg
10.58 lbs

Supported operation systems

Windows XP (32Bit + 64Bit)
Windows Vista (32Bit + 64Bit)
Windows 7 (32Bit + 64Bit)



Oscilloscope Functions

Digital Oscilloscope Rigol DS4054

Channels

4

Real-time sample rate

4 GSa/s realtime

Bandwidth

500 MHz

Sampling Modus

Normal, average, peak detect

Mathematics

userdefined, FFT (Fast Fourier Transform)

FFT algorithm

Rectangle, Hanning, Hamming, Blackman

Signal Bus Decoding

Parallel (standard), RS232/UART (option),
I²C (option), SPI (option), CAN (option), FlexRay (option)



Signal

Digital Oscilloscope Rigol DS4054

Input

DC/AC coupling, CAT I 300 Vrms, CAT II 100 Vrms

Real-time sample rate

up to 4 GSa/s realtime

Time base

1 ns/div to 50 s/div

Memory

140 Mpts (1 Channel)



Vertical

Digital Oscilloscope Rigol DS4054

Analog digital converter (A/D)

With the resolution of 8 bits, make sampling on both channels synchronously.

Sensitivity range (V/div)

2 mV/div to 5 V/div

Offset range

2 mV/div to 5 V/div ± 40 V



Trigger

Digital Oscilloscope Rigol DS4054

Trigger

Channel, Ext, EXT/5

Signal system and line/field frequency (Video triggering mode)

PAL, NTSC, SECAM

Triggerfunctions

Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, SPI, USB, FlexRay



Measurement

Digital Oscilloscope Rigol DS4054

Cursor measurement

Manual, Track and Auto Measure modes

Auto measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2(fall), Phase1-2 (rise), Phase1-2 (fall)
