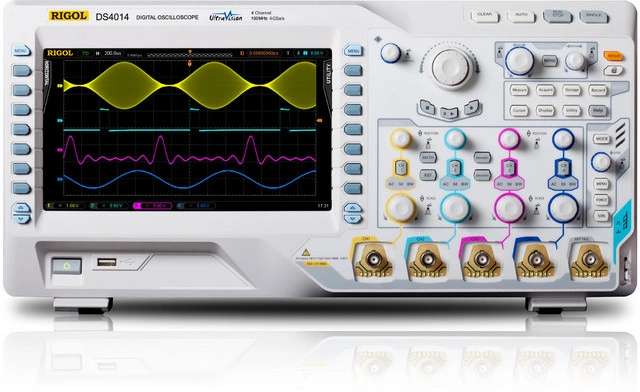

 Rigol DS4014  4 channel 100MHz 4GSa/s images


Pin It


Rigol DS4014 4 channel 100MHz 4GSa/s

SKU: Rigol DS4014

Rigol DS4014 4 channel 100MHz 4GSa/s

Quick Overview:

• 100 MHz bandwidth

• 4 GSa/s sample rate

• 4 Analog channels available

• 140 million memory points, standard

• 110,000 Waveforms per second

• Original Ultravision technology

• Hardware allows for real-time, continuous waveform recording and waveform analysis

Product Description:

High quality 4 channel DSO with 100 MHz bandwidth, 4 GSa/s and 140 Mpts memory depth.

Delivery including 4 probes (bandwidth 500 MHz), USB cable, front panel cover, pc software, power adapter and manual.

The Rigol DS4014 is a very high quality four channel digital storage oscilloscope. It offers up to 4 GSa/s real-time sample rate and up to 100 MHz bandwidth.

These high performances ensure not only to capture real-time instantaneous signal, but also to observe details of repeated signal. DS4014 have up to 110.000 wfms/s refresh rate, which enable users to capture instantaneous signal and abnormal signal more quickly, to enhance waveform capturing ability, and to expedite circuit debug course. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.

Other advantages: 9" color LCD, bright and vivid waveform display; versatile trigger modes: i.e. slope, alternative, rise&fall edge, enable users to stabilize signal more easily. In economical oscilloscope field, DS4014 have no doubt the highest performances, the most functions thus should be engineers’ best choice.

Special Features:

• Innovative wider display:

It is possible to observe up to 14 divisions on the innovative extra wide 9" display with a resolution of 800x480 pixels. Using the "Waveform Finder" it is easy to find a specific part of the recorded waveform.

• Ultra Vision:

Due to the very high capture rate and the huge memory it is possible to capture up to 110.000 waveforms per second. It is possible to store up to 140.000.000 single measurement points. With Ultra Vision you can zoom into a selected part of the captured waveforms to get more details.

• Advanced Math:

The DS4000 series oscilloscopes comes with a modern and advanced math system which allows to solve complicated signal calculations quite simply using user defined formulas.

• Auto measurements with statistics:

The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).

• Serial Bus Decoding:

Serial data packages of different serial bus systems can be decoded.
supported protocols are: Parallel (standard), RS232/UART (option), I²C (option), CAN (option) and FlexRay (option)
The optional decoding modules can be bought separately, see accessories tab on this site.

• Masked Pass/Fail-Tests:

Pass/fail testing can be used for troubleshooting in various environments like communication networks.
Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm



Specifications:

General Data

Digital Oscilloscope Rigol DS4014

Display

9" WVGA-Color-LCD

Resolution

800 × 480 Pixel

Interface

• 2x USB-host for i.e. USB sticks

• USB-Device for a PC connection or USB Pict-Bridge printerinterface

• LAN for network connectivity (LXI compilant)

• GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module

• Trigger- and Calibrationoutput

• 10 MHz reference clock In-/Out

• VGA interface to connect to an external monitor or projector

Size (W × H × D)

44 cm × 21.8 cm × 13 cm

17.32" × 8.58" × 5.12"

Weight

4.8 kg

10.58 lbs

Supported operation systems

Windows XP (32Bit + 64Bit)

Windows Vista (32Bit + 64Bit)

Windows 7 (32Bit + 64Bit)



Oscilloscope Functions

Digital Oscilloscope Rigol DS4014

Channels

4

Real-time sample rate

4 GSa/s realtime

Bandwidth

100 MHz

Sampling Modus

Normal, average, peak detect

Mathematics

userdefined, FFT (Fast Fourier Transform)

FFT algorithm

Rectangle, Hanning, Hamming, Blackman

Signal Bus Decoding

Parallel (standard), RS232/UART (option),

I²C (option), SPI (option), CAN (option), FlexRay (option)



Signal

Digital Oscilloscope Rigol DS4014

Input

DC/AC coupling, CAT I 300 Vrms, CAT II 100 Vrms

Real-time sample rate

up to 4 GSa/s realtime

Time base

1 ns/div to 50 s/div

Memory

140 Mpts (1 Channel)



Vertical

Digital Oscilloscope Rigol DS4014

Analog digital converter (A/D)

With the resolution of 8 bits, make sampling on both channels synchronously.

Sensitivity range (V/div)

2 mV/div to 5 V/div

Offset range

2 mV/div to 5 V/div ± 40 V

Trigger

Digital Oscilloscope Rigol DS4014

Trigger

Channel, Ext, EXT/5

Signal system and line/field frequency (Video triggering mode)

PAL, NTSC, SECAM

Triggerfunctions

Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, SPI, USB, FlexRay



Measurement

Digital Oscilloscope Rigol DS4014

Cursor measurement

Manual, Track and Auto Measure modes

Auto measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2(fall), Phase1-2 (rise), Phase1-2 (fall)
