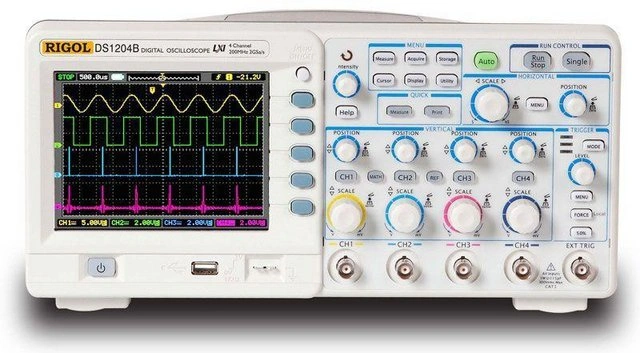

Rigol DS1204B 200MHz 4 channel Digital Oscilloscope

SKU: Rigol DS1204B

Rigol DS1204B 200MHz 4 channel Digital Oscilloscope

Quick Overview

200MHz Bandwidth, 4 Channel, 2GSa/s Digital Oscilloscope. Supplied with 4 probes, USB cable, PC software, power adapter and manual.

Product Description

High Performance 4-Channel Digital Oscilloscope

4 Input Channels,

2 GSa/s real time sample rate

Up to 200 MHz bandwidth and much more to simplify your system design and test

The State-of-art Custom AFE Design

Ultrascope Software

DS1000B series offers powerful triggering; with Edge, Pulse Width, Video, Slope, Alternate, Pattern triggering, and adjustable triggering sensitivity, you will never miss a test signal in question

LED backlight Display. 5.7” QVGA (320X240) 64 K TFT color display uses the latest LED backlight technology, which gives you the best viewing experience, yet consumes less power and lasts a longer lifespan

Versatile Connectivity

LXI compliance and PictBridge Supported

Utilizing the state-of-art ASIC technology, RIGOL’s proprietary in-house design AFE replaces traditional mechanical relays to eliminate acoustical noise, achieve higher performance and reliability

With supplied Ultrascope Software, you can set up the communication between the DS1000B series and PC’s easily. The software supports screen capture, waveforms and setups storage and remote control

Standard connecting interfaces: USB Device, USB Host X2 and LAN

Product Characteristics

General Data

DS1204B

Display

5.7" TFT LCD with 65536 colors

Resolution

320 × 240 Pixel

Size

325 × 159 × 133 mm

(12.80" × 6.26" × 5.24")

Weight

3 kg (6.61 lbs)

Supported operation systems

Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)



Oscilloscope Details

DS1204B

Channels

4

Real-time sample rate

2 GSa/s real time

Bandwidth

200 MHz

Sampling mode

Normal, average (2, 4, 8, 16, 32, 64, 128, 256), peak detect

Mathematics

A+B, A-B, A×B, FFT (Fast Fourier Transform)

FFT algorithm

Rectangle, Hanning, Hamming, Blackman



Signal

DS1204B

Max. Input voltage

300 Vrms CAT I

Real-time sample rate

13 Sa/s to 2 GSa/s real time

Time base

1 ns/Div. to 50 s/Div.
(Steps 1 - 2 - 5)

Memory

16 kpts (2 channels)

8 kpts (4 channels)



Vertical

DS1204B

Analog digital converter (A/D)

With the resolution of 8 bits, make sampling on both channels synchronously.

Sensitivity range (V/div)

2 mV/Div to 10 V/Div.

Displacement range

±10 Div. (2 mV - 10 V)



Trigger

DS1204B

Trigger

Channel 1/2/3/4, Ext, Ext / 5, AC Line

Signal system and line/field frequency (Video triggering mode)

Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.



Measurement

DS1204B

Cursor measurement

Manual, Track and Auto Measure modes

Auto measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Time Delay A-B, Time Delay A-B, Phase Delay A-B,- Phase Delay A-B







011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Oscilloscopes

Manufacturer: Rigol

Bandwidth: 200MHz

Channels: 4 Channel

Sample Rate: 2GSa/s

Product code - SKU: Rigol DS1204B
