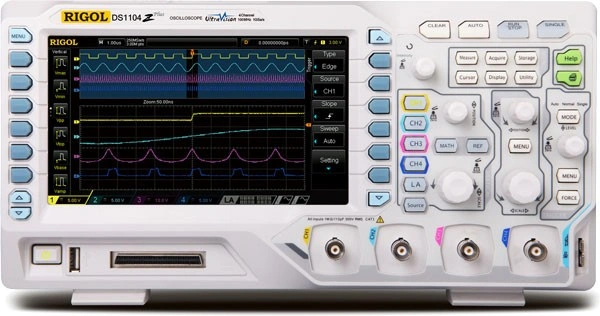

 Rigol DS1104Z-S Plus  100 MHz Digital Oscilloscope images


Pin It


Rigol DS1104Z-S Plus 100 MHz Digital Oscilloscope

SKU: DS1104Z-S Plus | 100 MHz Digital Oscilloscope





Product Description

The DS1104Z-S Plus is a 100 MHz Digital Oscilloscope with 4 channels and 25 MHz 2 channel integrated source plus 12 Mpt memory and connectivity and 1 GSa/sec sampling. Also includes port for logic analyzer for the MSO Upgrade Kit. Future purchase of the MSO Upgrade Kit turns this into a MSO1104Z-S.The DS1000Z Series is the new economic level Digital Oscilloscope from Rigol to meet the customer's applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The DS1000Z 4 channel oscilloscopes come in 50, 70 or 100 MHz versions with a 7 inch display and Rigol's UltraVision technology as well as a host of options. Add the optional analysis, decoding, deep memory, and integrated 2 channel waveform generator for a powerful 4 channel scope at an exceptional price. The Plus modes (available at 70 or 100 MHz) come with the MSO Logic Analyzer port built in. Simply purchase the MSO Upgrade Package accessory at a later date to turn a DS1000Z Plus into a fully equipped equivalent bandwidth MSO1000Z.

Features

  • 100MHz Bandwidth, 4 channels
  • 1G Sa/s Real-time Sample Rate
  • 12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
  • Innovative "UltraVision" technology
  • Up to 30,000wfms/s Waveform Capture Rate
  • 7 Inch WVGA (800x480), multiple intensity levels waveform display
  • Built in 2 channels 25MHz waveform Generator(DS1000Z-S)
  • Plus models now upgradeable with MSO Upgrade Package accessory

Specifications

Model
DS1074Z
Bandwidth
100 MHz
Analog Channels
4
Sample Rate
1GSa/s (Single-channel), 500MSa/s(Dual-channel), 250MSa/s(Fulll-channel)
Max Memory Depth
12Mpts(standard) ,24Mpts(option)
Max. Waveform Capture rate
Up to 30,000 wfms/s
Real Time waveform Record and Replay
Up to 60, 000 Frames(Opt.)
Std. Probes
RP2200 150MHz BW Passive Probe:4 sets
Built in 2 Ch Source
Yes
