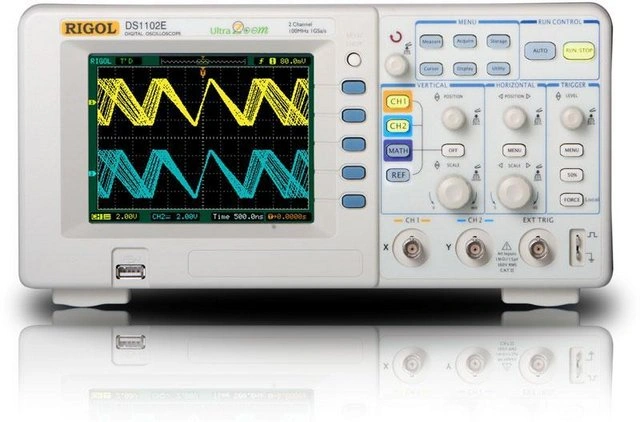

 Rigol DS1102E 100MHz 2 Channel Digital Oscilloscope images


Pin It


Rigol DS1102E 100MHz 2 Channel Digital Oscilloscope

SKU: Rigol DS1102E

Rigol DS1102E 2 Channel Digital Oscilloscope

Quick Overview

100MHz bandwidth, 2 channel, 1GSa/s Digital Oscilloscope. Supplied with 2 probes, USB cable, PC software, power adapter and manual.

Product Description:

The Rigol DS1102E is a high quality two channel digital storage oscilloscope. It offers up to 1 GSa/s real-time sample rate and up to 100 MHz bandwidth.

It not only has compact design and 64K TFT color LCD, but also powerful functions: up to 1M memory depth, with Ultrazoom function, it can enable users to observe details while survey the whole waveform; 7 trigger modes, adjustable trigger sensitivity, USB Host to support USB flash memory and USB printer, and other traditional functions of RIGOL oscilloscopes. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.



• 1 GSa/s maximum Real-time Sample Rate and 1 Mpts of memory depth

• Bandwidth - 100MHz

• Extensive set of trigger modes including: Edge, Video, Pulse Width, Slope, Alternate 5. 64 k TFT Color LCD, bright and vivid waveform display

• Compact design to save your desktop space

• 1 GSa/s maximum real-time sample rate, 10 GSa/s maximum equivalent-time sample rate

• 1Mpts long Memory Depth

• Ultra compact design: 303mm x 154mm x 133mm (WxHxD)

• 64 k TFT colour LCD, bright and vivid waveform display

• Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger

• 20 automatic measurements

• Cursor measurements: Manual, Track and Auto Measure modes

• 10 waveforms, 10 setups, BMP and CSV storage

• Math functions:+, -, x, FFT, Invert

• Special digital filter and waveform recorder

• Built-in hardware frequency counter

• Standard interface: USB Device, USB Host, RS-232

• Standard configuration: PassIFail test, effectively avoid electromagnetic interference by using photoelectricity-isolation

• Multi-language user interface, built-in help system

• Direct print to PictBridge compatible printers via USB Device interface



Special Features:

Ultrazoom
You can sample up to 1 million measurement points with this oscilloscope. Easily zoom in and scroll within the signal. Survey macroscopically, observe microscopically.

Automatically and Cursor Measure
This oscilloscope series provides 20 types of wave parameters for automatically measuring, which contains 10 Voltage and 10 Time parameters.

In cursor mode, users can easily measure by moving cursor. Besides, 3 types of cursor measurement are optional: Manual, Track and Auto.

Adjustable Trigger Sensitivity
With the Rigol oscilloscopes you have the ability to filter noise from the signal avoids false triggers.

Alternate Trigger
Provides a true dual timebase display.

Slope Trigger
Triggers on the signals rise time or fall time is user defined.

Rising and Falling Edge Trigger
Mainly used to view eye-diagrams normally only available in more advanced DSO's.

Pass / Fail Test
The Pass/Fail function monitors the changes of signals by comparing whether the input signal is within the pre-defined mask. The testing results not only can be displayed on screen or output by isolated pass/fail port, but also can be alarmed according to turn on system sound.

FFT (Fast Fourier Transformation)
The FFT function provides spectrum analysis function for users. Supported FFT algorithm: Rectangle, Hanning, Hamming, Blackman.

File System and USB Stick Support
The device supports an easy-to-use file system. It allows for both USB flash drive and local file storage.

PictBridge Certified (Printer Support)
You can easily connect a printer to the USB host port of the Rigol oscilloscopes and print out your measurement results.

Specifications:

General Data

DS1102E

Display

5.7" TFT LCD with 65536 colors

Resolution

320 × 234 Pixel

Size

303 × 154 × 133 mm
(11.93" × 6.06" × 5.24")

Weight

2500 g (5.51 lbs)

Supported operation systems

Windows 7 (32Bit + 64Bit), Vista (32Bit + 64Bit), XP (32Bit + 64Bit)



Oscilloscope Details

DS1102E

Channels

2

Real-time sample rate

1 GSa/s real time

Bandwidth

100 MHz

Sampling mode

Normal, average (2, 4, 8, 16, 32, 64, 128, 256), peak detect

Mathematics

A+B, A-B, A×B, FFT (Fast Fourier Transform)

FFT algorithm

Rectangle, Hanning, Hamming, Blackman



Signal

DS1102E

Max. Input voltage

300 Vrms CAT I

Real-time sample rate

13 Sa/s to 1 GSa/s real time

Time base

2 ns/Div. to 50 s/Div.
(Steps 1 - 2 - 5)

Memory

1 Mpts (1 channel)
512 kpts (2 channels)



Vertical

DS1102E

Analog digital converter (A/D)

With the resolution of 8 bits, make sampling on both channels synchronously.

Sensitivity range (V/div)

2 mV/Div to 10 V/Div.

Displacement range

±10 Div. (2 mV - 10 V)



Trigger

DS1102E

Trigger

Channel 1, Channel 2, Ext, Ext / 5, AC Line

Signal system and line/field frequency (Video triggering mode)

Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.



Measurement

DS1102E

Cursor measurement

Manual, Track and Auto Measure modes

Auto measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay1-2 (rise), Delay1-2(fall)



Rigol DS1102E Review



We ship to any address in South Africa

011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Oscilloscopes

Brand: Rigol

Bandwidth: 100MHz

Channels: 2 Channel

Sample Rate: 1GSa/s

Product code (SKU): Rigol DS1102E
