 Rigol DS1074B 70 MHz bandwidth  4 channel  2 GSa/s. images


Pin It


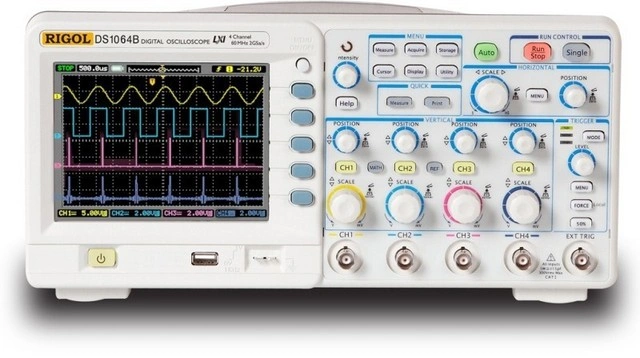

Rigol DS1074B 70 MHz bandwidth 4 channel 2 GSa/s.

SKU: Rigol DS1074B

Rigol DS1074B 70 MHz bandwidth  4 channel  2 GSa/s.

Oscilloscopes South Africa

Quick Overview:

High quality 4 channel DSO with 70 MHz bandwidth and 2 GSa/s.

Delivery including 4 probes, USB cable, pc software, power adapter and manual.

• 4 Analog channels plus external trigger

• 2 GSa/sec max sample rate

• 5.7” TFT QVGA (320×240) with 64K color LED backlight display with power save mode

• A dvanced trigger modes including Edge, Video, Pulse Width, Alternate and Pattern trigger



Product Description:

The Rigol DS1074B is a high quality four channel digital storage oscilloscope. It offers up to 2 GSa/s real-time sample rate and up to 70 MHz bandwidth.

It not only has compact design and 64K TFT color LCD, but also powerful functions: 7 trigger modes, adjustable trigger sensitivity, USB Host to support USB flash memory and USB printer, and other traditional functions of RIGOL oscilloscopes. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.



Special Features:

Automatically and Cursor Measure

This oscilloscope series provides 20 types of wave parameters for automatically measuring, which contains 10 Voltage and 10 Time parameters.

In cursor mode, users can easily measure by moving cursor. Besides, 3 types of cursor measurement are optional: Manual, Track and Auto.

Adjustable Trigger Sensitivity

With the Rigol oscilloscopes you have the ability to filter noise from the signal avoids false triggers.

Alternate Trigger

Provides a true dual timebase display.

Slope Trigger

Triggers on the signals rise time or fall time is user defined.

Rising and Falling Edge Trigger

Mainly used to view eye-diagrams normally only available in more advanced DSO's.

Pass / Fail Test

The Pass/Fail function monitors the changes of signals by comparing whether the input signal is within the pre-defined mask. The testing results not only can be displayed on screen or output by isolated pass/fail port, but also can be alarmed according to turn on system sound.

FFT (Fast Fourier Transformation)

The FFT function provides spectrum analysis function for users. Supported FFT algorithm: Rectangle, Hanning, Hamming, Blackman.

File System and USB Stick Support

The device supports an easy-to-use file system. It allows for both USB flash drive and local file storage.

PictBridge Certified (Printer Support)

You can easily connect a printer to the USB host port of the Rigol oscilloscopes and print out your measurement results.



Specifications:

General Data

DS1074B

Display

5.7" TFT LCD with 65536 colors

Resolution

320 × 240 Pixel

Size

325 × 159 × 133 mm

(12.80" × 6.26" × 5.24")

Weight

3 kg (6.61 lbs)

Supported operation systems

Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)



Oscilloscope Details

DS1074B

Channels

4

Real-time sample rate

2 GSa/s real time

Bandwidth

70 MHz

Sampling mode

Normal, average (2, 4, 8, 16, 32, 64, 128, 256), peak detect

Mathematics

A+B, A-B, A×B, FFT (Fast Fourier Transform)

FFT algorithm

Rectangle, Hanning, Hamming, Blackman



Signal

DS1074B

Max. Input voltage

300 Vrms CAT I

Real-time sample rate

13 Sa/s to 2 GSa/s real time

Time base

1 ns/Div. to 50 s/Div.

(Steps 1 - 2 - 5)

Memory

16 kpts (2 channels)

8 kpts (4 channels)



Vertical

DS1074B

Analog digital converter (A/D)

With the resolution of 8 bits, make sampling on both channels synchronously.

Sensitivity range (V/div)

2 mV/Div to 10 V/Div.

Displacement range

±10 Div. (2 mV - 10 V)



Trigger

DS1074B

Trigger

Channel 1/2/3/4, Ext, Ext / 5, AC Line

Signal system and line/field frequency

(Video triggering mode)

Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.



Measurement

DS1074B

Cursor measurement

Manual, Track and Auto Measure modes

Auto measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Time Delay A-B, Time Delay A-B, Phase Delay A-B,- Phase Delay A-B



We ship to any address in South Africa

011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Oscilloscopes

Brand: Rigol

Bandwidth: 70MHz

Channels: 4 Channel

Sample Rate: 1GSa/s

Product code (SKU): Rigol DS1074B
