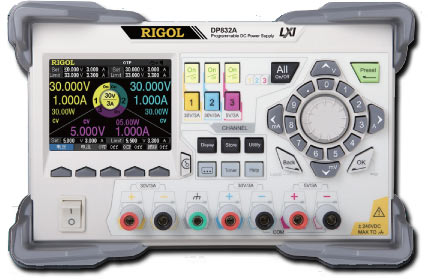

Rigol DP832A Programmable DC Power Supply

SKU: Rigol DP832A Programmable DC Power Supply

Rigol DP832A Programmable DC Power Supply



Product Description

Programmable DC Power Supply

Rigol DP832A is a 3 outputs programmable DC Power Supply with pure output ,excellent performance ,various analysis function and abundant connectivities wihch can meet different testing need .



Features and Benefits

• 3 Outputs, Max. Power up to 195W

• Low Ripple Noise: <350 uVrms/2mVpp

• Excellent Linear Regulation Rate and Load Regulation Rate

• Fast Transient Response Time: <50us

• Channel isolation: CH1 || CH2,CH3

• Standard OVP/OCP/OTP protection functions

• Standard Timing function

• Built in V,A,W measurements and waveform display

• Support Output Delay, Analysis, Monitor, Preset functions

• Independent control for each channel

• 3.5 Inch TFT Display

• Connectivity: USB Host& Device, LAN, RS232,Digital IO,Support USB-GPIB(Opt.)



Specifications



Model

DP832A

DP832

DP831A

Channels

                                                             3

DC Output (0℃ to 40℃)



Voltage/current



CH1: 0 to 30V/0 to 3A

CH2: 0 to 30V/0 to 3A

CH3: 0 to 5V/0 to 3A

CH1: 0 to 8V/0 to 5A

CH2: 0 to +30V/0 to 2A

CH3: 0 to -30V/0 to 2A



OVP/OCP



CH1: 1mV to 33V/1mAto 3.3A

CH2: 1mV to 33V/1mAto 3.3A

CH3: 1mV to 5.5V/1mAto 3.3A

CH1:

10mV~33V/1mA~3.3A

CH2: 10mV~33V/1mA~3.3A

CH3: 10mV~5.5V/1mA~3.3A

CH1:1mV ~ 8.8V/0.1mA ~ 5.5A

CH2:1mV ~ 33V/0.1mA ~ 2.2A

CH3:-1mV ~ -33V/0.1mA ~ 2.2A

Load Regulation Rate ±(Output Percentage + Offset)

Voltage

<0.01%+2mV

Current

<0.01%+250uA

Linear Regulation Rate ±(Output Percentage + Offset)

Voltage

<0.01%+2mV

Current

<0.01%+250uA

Ripples and Noise (20Hz to 20MHz)

Normal Mode Voltage

<350μVrms/2mVpp

Normal Mode Current

<2mArms

Common Mode Current

<1.5μArms

AnnualAccuracy[1] (25℃±5℃) ±(Output Percentage + Offset)

Programming

Voltage

0.05% + 10mV

0.1%+20mV

Current

0.2% + 10mA

0.2%+10mA

Readback

Voltage

0.05% + 5mV

0.1%+20mV

Current

0.15%+ 5mA

0.2%+10mA

Resolution





Programming

Voltage



1mV



10mV
With high-resolution option:

1mV



1mV



Current

1mA

1mA

CH1: 0.3mA

CH2/CH3: 0.1mA

Readback



Voltage



0.1mV

10mV

With high-resolution option:

0.1mV



0.1mV



Current





0.1mA

1mA

With high-resolution option:

0.1mA



0.1mA

Transient Response Time

Less than 50μs for output to recover to within 15mV following a change in output current from full load to half load or vice versa.

Command Processing Time[2]

<100ms

Temperature Coefficient per℃ (Output Percentage + Offset)

Voltage



CH1/CH2: 0.01%+5mV

CH3: 0.01%+2mV

0.01%+2mA



0.01%+2mV

Current

0.01%+2mA

0.02%+3mA

Stability[3]±(Output Percentage + Offset)

Voltage

CH1/CH2: 0.02%+2mV

CH3: 0.01%+1mV

CH1: 0.03%+1mV

CH2/CH3: 0.02% + 2mV



Current





0.05%+2mA

CH1: 0.1%+3mA

CH2/CH3: 0.05% + 1mA

Voltage Programming Control Speed (1% within the total variation range)

Rise

Full Load

CH1/CH2: <50ms

CH3: <11ms

CH1: <11ms

CH2/CH3: <50ms

No Load



CH1/CH2: <25ms

CH3: <10ms

CH1: <10ms

CH2/CH3: <25ms

Fall

Full Load

CH1/CH2: <30ms

CH3: <13ms

CH1: <13ms

CH2/CH3: <30ms

No Load

CH1/CH2: <400ms

CH3: <200ms

CH1: <200ms

CH2/CH3: <400ms

OVP/OCP

Accuracy ±(Output Percentage +Offset)

0.5%+0.5V/0.5%+0.5A

Activation Time

1.5ms (OVP≥3V)

<10ms (OVP<3V and OCP)

Mechanical

Dimensions

239mm(W) x 157mm(H) x 418mm(D)

Weight

9.0kg

Power

AC Input

(50Hz to 60Hz)

100Vac+10%, 115Vac+10%

220Vac+10%, 230Vac+10% (maximum 250VAC)

I/O

USB Device

1

1

1

USB Host

1

1

1

LAN

1

Option

1

RS232

1

Option

1

Digital IO

1

Option

1



Working Temperature



Full Rated Value Output: 0℃ to 40℃

Under Relatively Higher Temperature: the linearity of the output current reduces to 50% at the highest

temperature 55℃

Cooling Method

Fan Cooling





Advanced Functions



Large screen display , novel and beautiful appearance

Rigol DP832A Programmable DC Power Supply

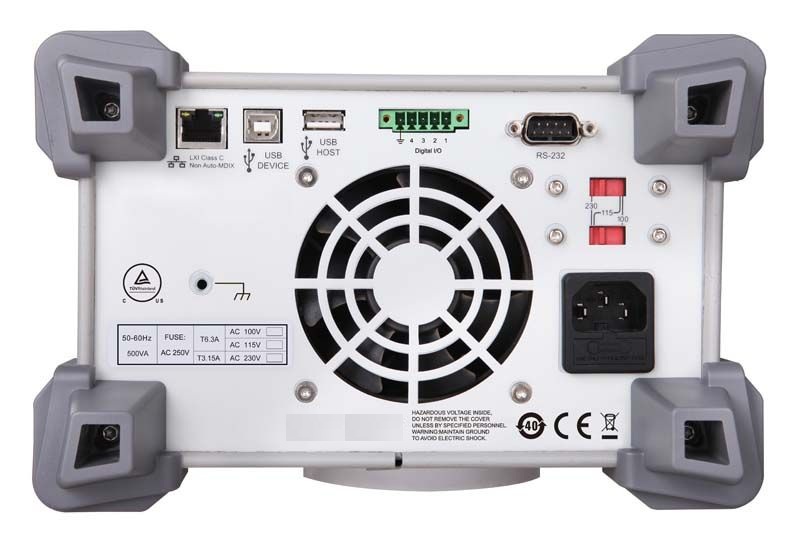

Abundant connectvity

Citek CI508832 Programmable DC Power Supply







Ordering Information





Description

Order Number



Model

Programmable DC Power (3 Channels)

DP831A

Programmable DC Power (3 Channels)

DP832A

Programmable DC Power (3 Channels)

DP832







Standard Accessories

Power cord

-

USB data cable

CB-USB-150

One shorted device

-

CD (including User’s Guide and Programming Guide)

-

One fuse(50T-025H 250V 2.5A)

-

Quick Guide

-







Optional Accessories

1mV & 1mA High resolution option(DP832)

DP8-HI-RES

4 Lines Trigger In&Out(DP832)

DP8-DIGITAL-IO

On-line Monitoring and analysis(DP832)

DP8-AFK

RS232 and LAN interface(DP832)

DP8-INTERFACE

USB to GPIB Converter

USB-GPIB

Rack Mount Kit

RM-DP-1
