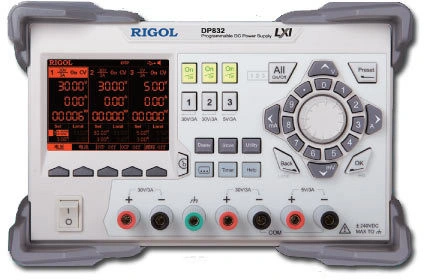

Rigol DP832 Programmable DC Power Supply

SKU: Rigol DP832 Programmable DC Power Supply

Rigol DP832 Programmable DC Power Supply



Product Description

 Rigol DP832 Programmable DC Power Supply

DP832 is a 3 outputs programmable DC Power Supply with pure output ,excellent performance ,various analysis function and abundant connectivities wihch can meet different testing need.



Features and Benefits

• 3 Outputs, Max. Power up to 195W

• Low Ripple Noise: <350 uVrms/2mVpp

• Excellent Linear Regulation Rate and Load Regulation Rate

• Fast Transient Response Time: <50us

• Channel isolation: CH1 || CH2,CH3

• Standard OVP/OCP/OTP protection functions

• Standard Timing function

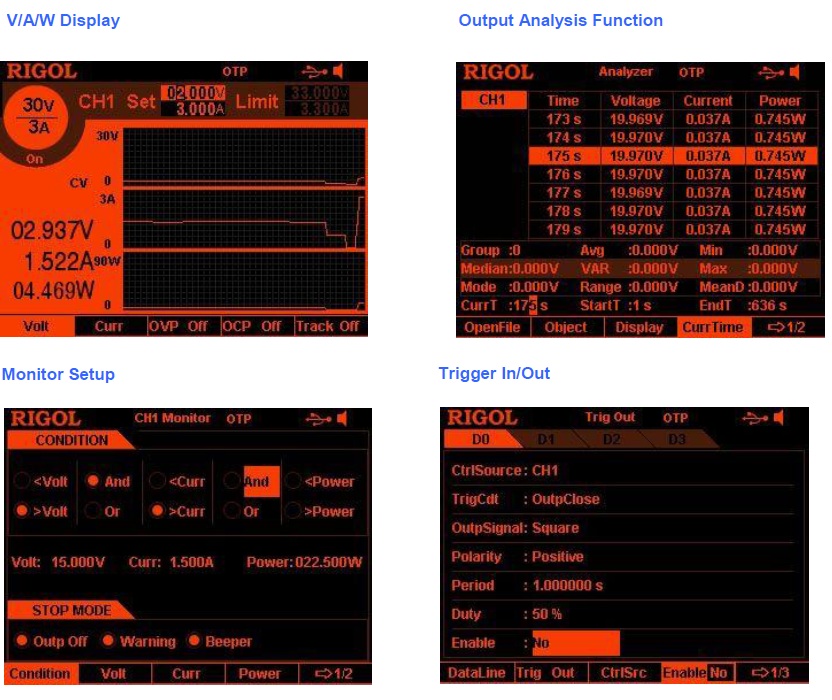

• Built in V,A,W measurements and waveform display

• Support Output Delay, Analysis, Monitor, Preset functions

• Independent control for each channel

• 3.5 Inch TFT Display

• Connectivity: USB Host& Device, LAN, RS232,Digital IO,Support USB-GPIB(Opt.)



Specifications



Model

DP832A

DP832

DP831A



Channels

                                                       3



DC Output (0°C to 40°C)





Voltage/current



CH1: 0 to 30V/0 to 3A

CH2: 0 to 30V/0 to 3A

CH3: 0 to 5V/0 to 3A

CH1: 0 to 8V/0 to 5A

CH2: 0 to +30V/0 to 2A

CH3: 0 to -30V/0 to 2A





OVP/OCP



CH1: 1mV to 33V/1mA to 3.3A

CH2: 1mV to 33V/1mA to 3.3A

CH1: 10mV~33V1mA~3.3A

CH2: 10mV~33V/1mA~3.3A

CH3: 10mV~5.5V/1mA~3.3A

CH1: 1mV ~ 8.8V/0.1mA~5.5A

CH2: 1 mV ~ 33V/0.1mA~2.2A

CH:3:-1mV~-33V/0.1mA~2.2A



Load Regulation Rate ±(Output Percentage + Offset)



Voltage

<0.01% +2mV



Current

<0.01% +250uA



Ripples and Noise (20Hz to 20MHz)



Normal Mode Voltage

<350µ Vrms/2mVpp



Normal Mode Current

<2mArms



Common mode Current

1.5µArms



Annual Accuracy [1] (25°C ±5°C) ±(Output Percentage + Offset)



Programming

Voltage

0.05% +10 mV

0.1% +20mV



Current

0.2% + 10mA

0.2% +10mA



Readback

Voltage

0.05% + 5mV

0.1% +20mV



Current

0.15% + 5mA

0.2% + 10mA



Resolution







Programming





Voltage



1mV

10V.

With high-resolution option

1mV



1mV



Current

1mA

1mA

Ch: 0.3mA

CH2/CH3: 01mA







Readback



Voltage



0.1mV

10mV

With high-resolution option:

0.1mV



01mV



Current

0.1mA

1mA

With high- resolution option:

0.1MA



0.1mA



Display

Voltage

1mV

10mV

With high-resolution option:

1mV



1mV



Current

1mA

10mA

With high-resolution option:

1mA



1mA



Transient Response time



Less than 50µs for output to recover to within 15mV following a change in output current from full load to half load ot vice versa



Command Processing Time [2]



<100ms

Temperature Coefficient  per °C  (Output percentage + Offset)

Voltage

CH1/CH2: 0.01% +5mV

CH3: 0.01% +2mV

0.01%+2mV

Current

0.01%+2mA

0.02%+3mA

Stability [3] ±(Output Percentage + Offset)

Voltage

CH1/CH2: 0.02%+2mV

CH3: 0.01%+1mV

CH1: 0.03%+1mV

CH2/CH3: 0.02% +2Mv

Current

0.05% +2mA

CH1: 0.1%+3mA

CH2/CH3: 0.05% + 1mA

Voltage Programming Control Speed (1% within the total variation range)

Rise

Full Load

CH1/CH2: <50ms

CH3: <11ms

CH1: <11ms

CH2/CH3: <50ms

No load

CH1/CH2: <25ms

CH3:<10ms

CH1: <10ms

CH2/CH3: <25ms

Fall

Full Load

CH1/CH2: <30ms

CH1: <13ms

CH2/CH3: <30ms

No Load

CH1/CH2: <400ms

CH3: <200ms

CH1: <200ms

CH2/Ch3: <400ms

OVP/OCP

Accuracy ±(Output Percentage +Offset)

0.5%+0.5V/0.5%+0.5A

Activation Time

1.5ms (OVP≥3V)

<10ms (OVP<3V and OCP)

Mechanical

Dimensions

239mm(W) x 157mm(H) x 418mm(D)

Weight

9.0kg

Power

AC Input

(50Hz to 60Hz)

100Vac±10%, 115Vac±10%

220Vac±10%, 230Vac±10%  (maximum 250VAC)

I/O

USB Device

1

1

1

USB  Host

1

1

1

LAN

1

Option

1

RS232

1

Option

1

Digital IO

1

Option

1

Environment



Working Temperature



Full Rated Value Output: 0°C to 40°C

Under Relatively Higher Temperature: linearity of the output current reduces to 50% at thhe highest temperature 55°C

Cooloing Method

Fan Cooling





Advanced Functions



• Large screen display , novel and beautiful appearance

Rigol DP832 Programmable DC Power Supply





• Abundant connectvity

Programmable DC Power Supply



Rigol DP832 functions

Rigol DC power Supplies South Africa





Ordering Informatiomn





Description

Order Number



Model

Programmable DC Power (3 Channels)

DP831A

Programmable DC power (3 Channels)

DP832A

Programmable DC Power (3 Channels)

DP832







Standard Accessories

Power cord

-

USB data cable

CB_USB_150

One shorted device

-

CD (including User's Guide and Programming Guide)

-

One fuse (50T_025H 250V 2.5A)

-

Quick guide

-





Optional Accessories

1mV & 1mA High resolution option (DP832)

DP8-HI-RES

4 Lines Trigger in&Out(DP832)

DP8-DIGITAL-IO

On-line Monitoring and analysis (DP832)

DP8-AFK

RS232 andd LAN interface (DP832)

DP8-INTERFACE

USB to GPIB Converter

USB-GPIB

Rack Mount Kit

RM-DP-1
