 Rigol DP711 programmable DC power supply images

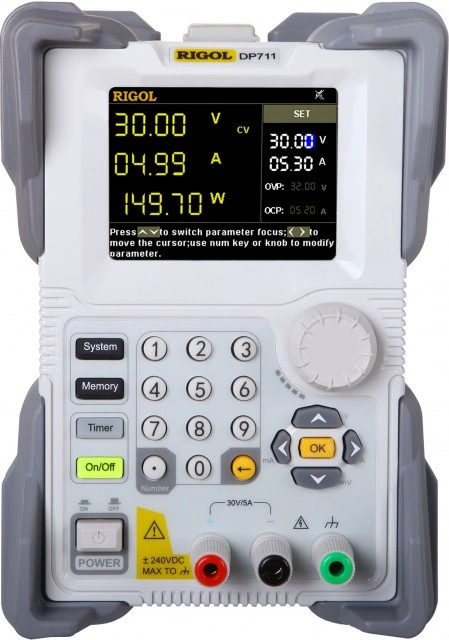

Rigol DP711 programmable DC power supply

: Rigol DP711

Product Description

The Rigol DP711 is a very high quality programmable laboratory power supply with one DC output (30 V/5 A) and a maximum power output of 150 W. Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure. The Rigol DP711 features a relative large (8.9 cm / 3.5") and easy to read TFT display. A timer control can be used to set the output signal to different values in up to 2048 groups.


Specifications


SpecificationsRigol DP711
Outputs 1
Output Power (max.) 150 W
Overtemperature shut down 55 °C
Working Temperature 0 °C to 40 °C
Cooling Method Fan cooling
Output VoltageRigol DP711
Output Voltage (max.) 0 to +30 V/DC
Accuracy ±0.05% + 20 mV
Resolution 10 mV (1 mV with high res. option)
Overvoltage Protection 0.01 V to 33 V
Load Regulation <0.01% + 2 mV
Line Regulation <0.01% + 2 mV
Ripple and Noise <500 µVrms / 3 mVpp
Output CurrentRigol DP711
Output Current (max.) 5 A/DC
Accuracy ±0.2% + 10 mA
Resolution 10 mA (1 mA with high res. option)
Overcurrent Protection 0.01 A to 5,5 A
Load Regulation <0.01% + 2 mA
Line Regulation <0.01% + 2 mA
Ripple and Noise <2 mArms
Programmable power supplyRigol DP711
Display 8.9 cm (3.5") TFT-LCD
Resolution 320 × 240 Pixel
Additional Interfaces RS232
Dimensions (W × H × D) 14 cm × 20.2 cm × 33.2 cm
Weigh 6.9 kg
Input 230 V/AC, 220 V/AC, 120 V/AC oder 110 V/AC (adjustable)
