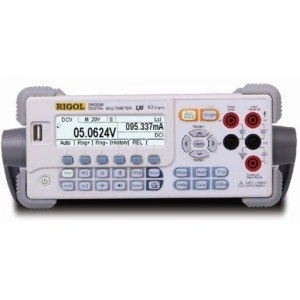

Rigol DM3068 6 ½ DIGIT DIGITAL MULTIMETER
: Rigol DM3068
Product Description
The Rigol DM3068 is a high quality digital benchtop multimeter from the DM3060 series with a very high sampling rate of up to max. 10 kSa/s.
The Rigol multimeter comes with very well designed and easy to use controls which also offer comprehensive ease-of-use functions for all measurement tasks. The menu structure is very intuitive to use. The device helps you obtain precise measurement results in a wide range of applications.
The LCD with its 256x64 pixels is highly legible and provides a good overview of the many individual functions. It has a maximum resolution of 6½ digits (maximum display value 2.400.000).
•True 6 ½ digit resolution
•Minimum Integration Time is 0.006 PLC for more than 8,000 measurements per second
- •True-RMS AC Voltage & Current measurements
- •View real time measurement trending or histograms from the front panel
- •Built-in comprehensive configurations for a variety of temperature sensors
- •GPIB, USB, RS-232, and LXI-C (Ethernet) Connectivity
The Model DM3068 DMM gives reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3068 is a great bench tool for high performance, reliable measurements, but also a new high speed data acquisition option for many measurement challenges.
Special Features:
File System and USB Stick Support
You can save measurement results and settings to a USB stick via the integrated USB host port.
The device also features 10 internal memory slots for settings.
High Resolution
This model can display values up to a maximum of 2.400.000.
This allows even larger measurement values to be displayed with several digits after the decimal point.
Dual Display
For some measurements, a 2nd value can be measured and displayed simultaneously.
However, this only applies to valid combinations such as AC voltage and frequency measurement.
Online Help
Every function and every button is explained briefly in the online help.
This help can be activated with the Help button or by simply holding a different button.
Sensor Recording
You can use the multimeter to adapt a variety of sensors and to display the corresponding values.
Trend View
Trend development over several minutes can be captured directly, a temperature trend in this example.
Specifications:
|
Measurement |
Range |
Accuracy |
Resolution |
|
DC Voltage (DCV) |
200.0000 mV |
0.0020%+40dig |
100 nV |
|
AC Voltage (ACV) 3 Hz - 5 Hz
|
200.0000 mV |
1.00%+400dig |
100 nV |
|
3 Hz - 5 Hz |
2.000000 V |
1.00%+400dig |
1 µV |
|
3 Hz - 5 Hz |
20.00000 V |
1.00%+600dig |
10 µV |
|
3 Hz - 5 Hz |
200.0000 V |
1.00%+400dig |
100 µV |
|
3 Hz - 5 Hz |
750.000 V |
1.00%+150dig |
1 mV |
|
DC Current (DCA) |
200.0000 µA |
0.010%+24dig |
100 pA |
|
AC Current (ACA) 3 Hz - 5 Hz
|
200.0000 µA |
1.10%+1200dig |
100 pA |
|
3 Hz - 5 Hz |
2.000000 mA |
1.00%+800dig |
1 nA |
|
3 Hz - 5 Hz |
20.00000 mA |
1.10%+1200dig |
10 nA |
|
3 Hz - 5 Hz |
200.0000 mA |
1.00%+800dig |
100 nA |
|
3 Hz - 5 Hz |
2.000000 A |
1.10%+1200dig |
1 µA |
|
3 Hz - 5 Hz |
10.00000 A |
1.10%+800dig |
10 µA |
|
Resistance |
200.0000 Ω |
0.003%+60dig |
100 µΩ |
|
Capacitance |
2.000 nF |
2.0%+50dig 1.0%+6dig |
1 pF |
|
Frequencies |
3 Hz - 5 Hz |
0.07% |
|
|
Function |
Rigol DM3068 Digital Multimeter |
|
Auto Range |
√ |
|
Manual Range |
√ |
|
True RMS (TRMS) |
√ |
|
Diode test |
√ |
|
Transistor test |
|
|
Continuity test |
√(fast reaction time with 300 Sa/s!) |
|
Battery test |
|
|
Low battery indication |
n/a (mains connection only) |
|
Relatively measuring |
√ |
|
Data hold |
√ |
|
Auto power-off |
|
|
Overload protection |
√ |
|
Shockproof Protection |
|
|
Backlight |
√ |
|
Max. Reading |
2.400.000 (6½ digits) |
|
LCD |
90 mm × 25 mm (256x64Pixel) |
|
Sampling rate |
10 kSa/s |
|
Memory Depth (volatile) |
512k readings (History) |
|
Memory Depth (non volatile) |
10 groups of 5000 readings |
|
Connections |
RS-232, USB Device, USB Host, Ext.Trig., |
|
Details |
Rigol DM3068 Digital Multimeter |
|
Power supply |
230 V / 50 Hz / 110 V / 60 Hz mains connection |
|
Safety standard |
CAT II/600 V |
|
Dimensions |
290.5 mm × 231.6 mm × 107.0 mm |
|
Weight without accessories / packaging |
2500 g |
|
Weight with accessories / packaging |
4465 g |
